Figure 3—figure supplement 2.

ID: ZDB-IMAGE-191230-156
Publication: Jung et al., 2019 - MicroRNA-mediated control of developmental lymphangiogenesis
All Figures: Figures for Jung et al., 2019


Figure Caption

Figure 3—figure supplement 2. MicroRNA 204 mutants.

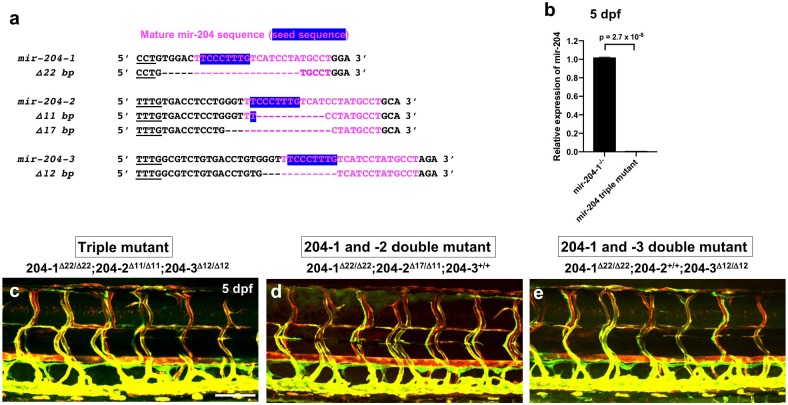

(a) Sequence alignment of mir-204–1, −2, and −3 wildtype and deletion mutant. The mature mir-204 sequence are noted with magenta lettering and the seed sequence is highlighted in blue. (b) Quantitative TaqMan RT-PCR measurement of the relative levels of mature mir-204 in five dpf mir-204 triple mutants and their mir-204–1^-/- siblings, normalized to mir-204–1^-/- mutants. Three biological replicates were analyzed. (c–e) Confocal image of 5 dpf Tg(mrc1a:eGFP)^y251, Tg(kdrl:mCherry)^y171 mir-204 triple mutant (c), mir-204–1 and −2 double mutant (d), and mir-204–1 and −3 double mutant (e) animals. All images are lateral views, rostral to the left. Scale bar: 100 μm (c). All graphs are analyzed by t-test and the mean ± SD is shown.
