Fig. 3

ID: ZDB-IMAGE-191230-1443
Source: Figures for Carter et al., 2019


Figure Caption

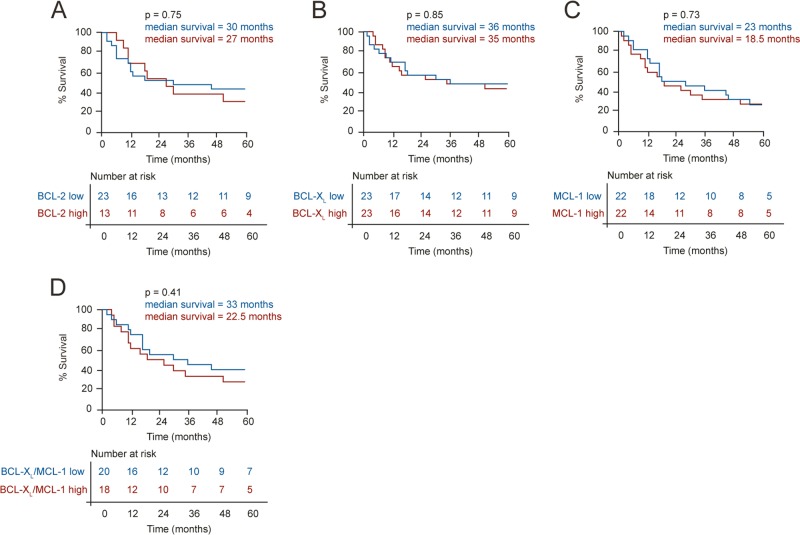

Fig. 3 Expression levels of the antiapoptotic BCL-2 family members do not correlate with patient overall survival.

Kaplan–Meier curves comparing the overall survival of patients (censored at 60 months) in the highest versus lowest quartiles for expression of a BCL-2, b BCL-X_L, c MCL-1, and d BCL-X_L and MCL-1, in oral cavity tumors. Numbers at risk are displayed below each graph, to demonstrate the numbers of patients analyzed per category. Comparison of survival curves used the log-rank (Mantel–Cox) test.
