ZFIN Image: Tan et al., 2019, FIGURE 4


Figure Caption

FIGURE 4

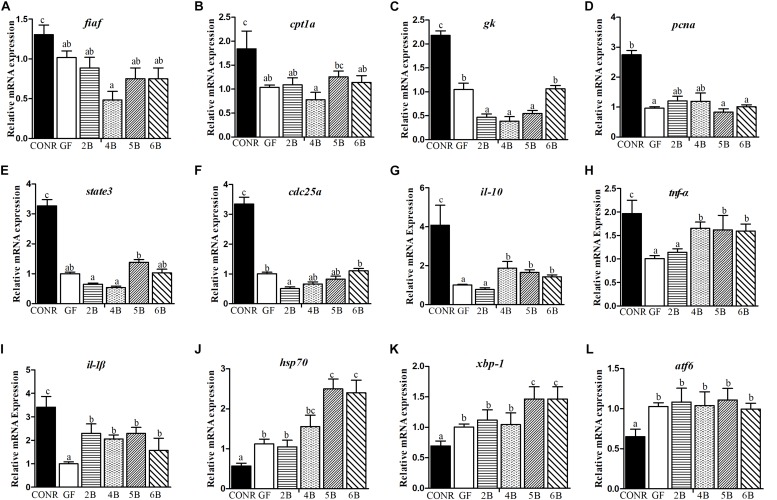

Comparisons of gene expression levels among germ-free (GF) zebrafish, CONR zebrafish and mono-associated (GF) zebrafish with different concentrations of B. subtilis WB800N. (A) The expression levels of nutrients metabolism related genes fiaf, (B)cpt1a, (C)gk. (D) The expression level of cell proliferation related genes pcna, (E)state3, (F)cdc25a. (G) The expression levels of innate immune related genes il-10, (H)tnf-α and (I)il-1β. (J) The expression levels of damage stress related genes hsp70, (K)xbp1 and (L)atf6. The results were shown as mean ± SEM of three independent experiments with six replicates for each experiment, n = 90, per group. Different letters indicate statistically significant differences among groups (p < 0.05).
