Publication: Ravi et al., 2019 - Lampreys, the jawless vertebrates, contain three Pax6 genes with distinct expression in eye, brain and pancreas
All Figures: Figures for Ravi et al., 2019


Figure Caption

Figure 1

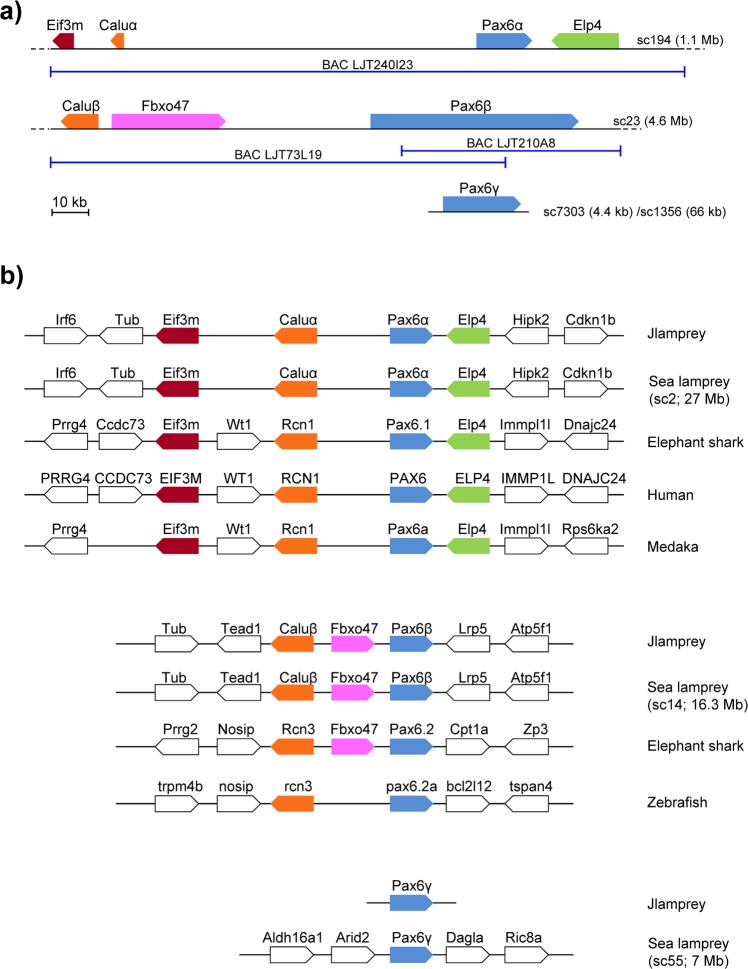

The lamprey genome contains three Pax6 genes. (a) The three Pax6 loci in the Japanese lamprey, L. japonicum. Lamprey Pax6 genes are named Pax6α, Pax6β and Pax6γ. The BAC clones sequenced are shown below. LjPax6γ resides on a short (66 kb) scaffold containing no other genes. (b) Gene synteny comparison of the three Japanese lamprey (Jlamprey) and sea lamprey Pax6 loci with Pax6 loci from selected gnathostomes.
