Fig. 2

Pectoral and pelvic fin musculature is affected in adult met^-/- mutant zebrafish.

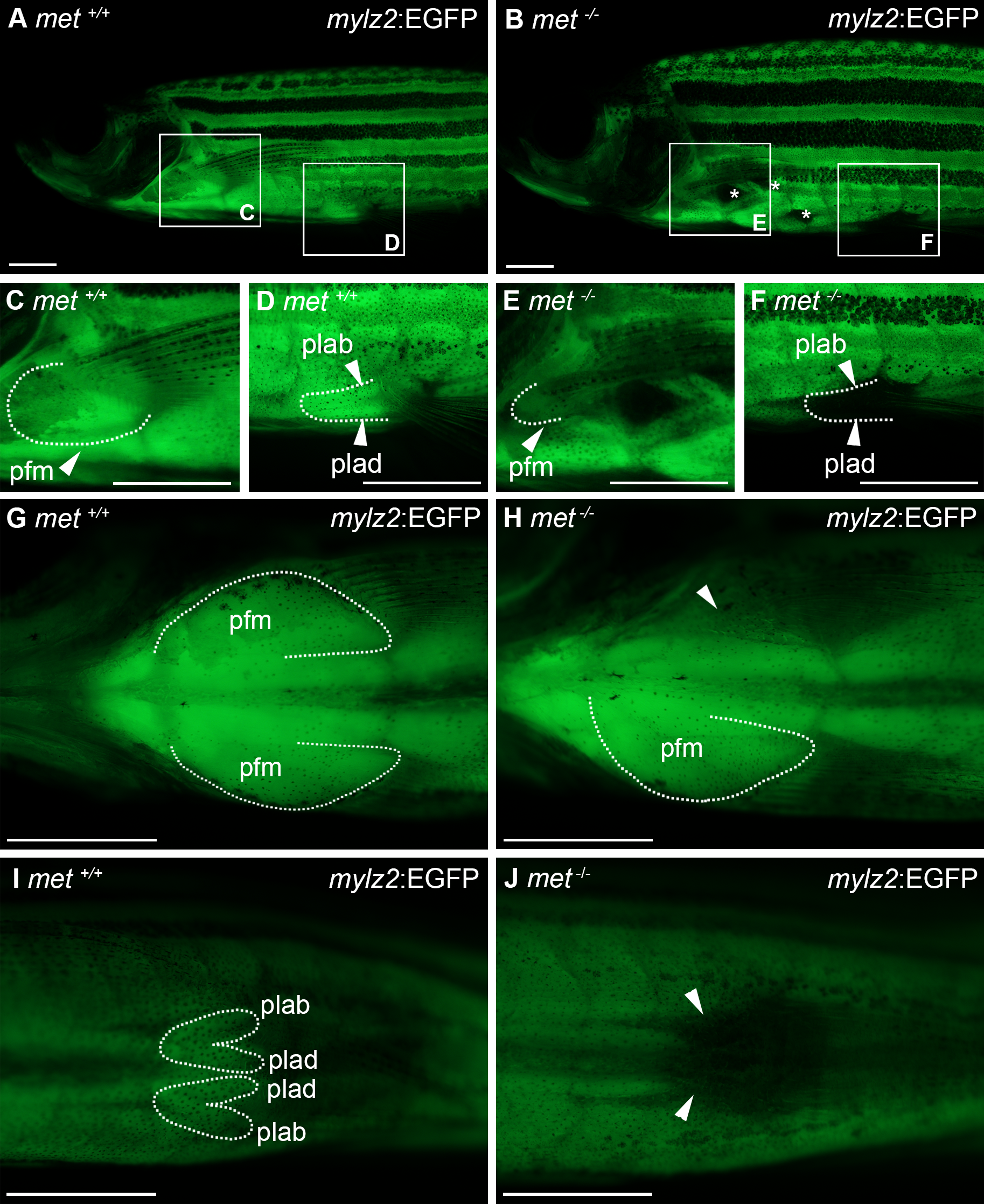

Lateral view of mylz2:EGFP transgenic expression in pectoral and pelvic fin musculature of (A) met^+/+ (n = 18) and (B) met^-/- (n = 15) adult zebrafish, squares indicate areas of enlargement in C-F. Ventral view of mylz2:EGFP transgenic expression in pectoral fin muscle of (G) met^+/+ (n = 18) and (H) met^-/- (n = 15) adult zebrafish. Ventral view of mylz2:EGFP transgenic expression in pelvic fin muscle of (I) met^+/+ (n = 18) and (J) met^-/- (n = 15) adult zebrafish. Dashed lines outline muscles as indicated, asterisks indicate areas affected in the hypaxial musculature, arrowheads indicate lack of muscle. Abbreviations: pfm: pectoral fin muscle; plab: abductor pelvicus; plad: adductor pelvicus. Scale bar: 1 mm.
