Figure 6

ID: ZDB-IMAGE-190723-898
Publication: Liao et al., 2018 - A Novel ShK-Like Toxic Peptide from the Transcriptome of the Cnidarian Palythoa caribaeorum Displays Neuroprotection and Cardioprotection in Zebrafish.
All Figures: Figures for Liao et al., 2018


Figure Caption

Figure 6

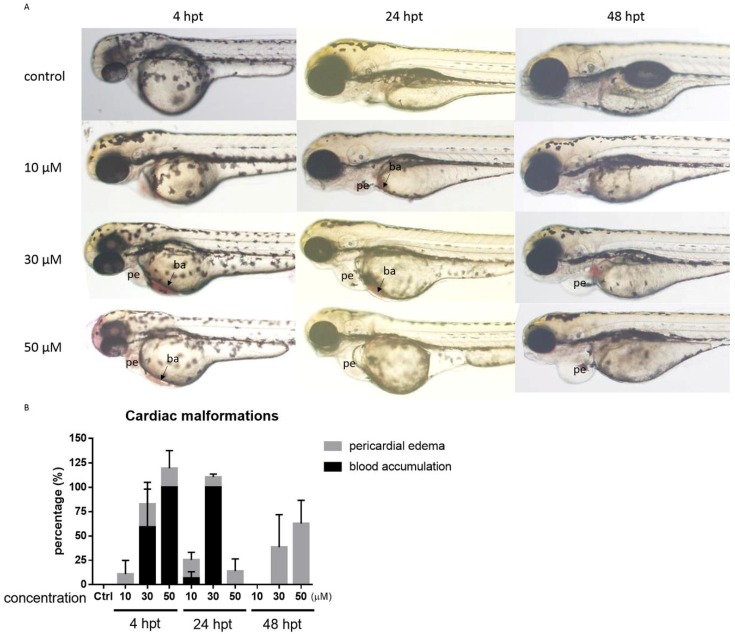

Evaluation of cardiac malformations of zebrafish larvae upon PcShK3 peptide exposure. (A) Time and dose-dependent change in developmental cardiac malformations in larvae after exposure to peptide (30 μM) from 4 to 48 hpt. The blood accumulation (ba) appeared after 4 h of drug treatment and decreased after 24 h. The rate of pericardial edema (pe) increased from 24 hpt in a dose-dependent fashion. Values are shown as the mean ± S.D. of three replicates each with 15 larvae; (B) Phenotype plot of cardiac abnormalities induced by the peptide.
