Fig. 2

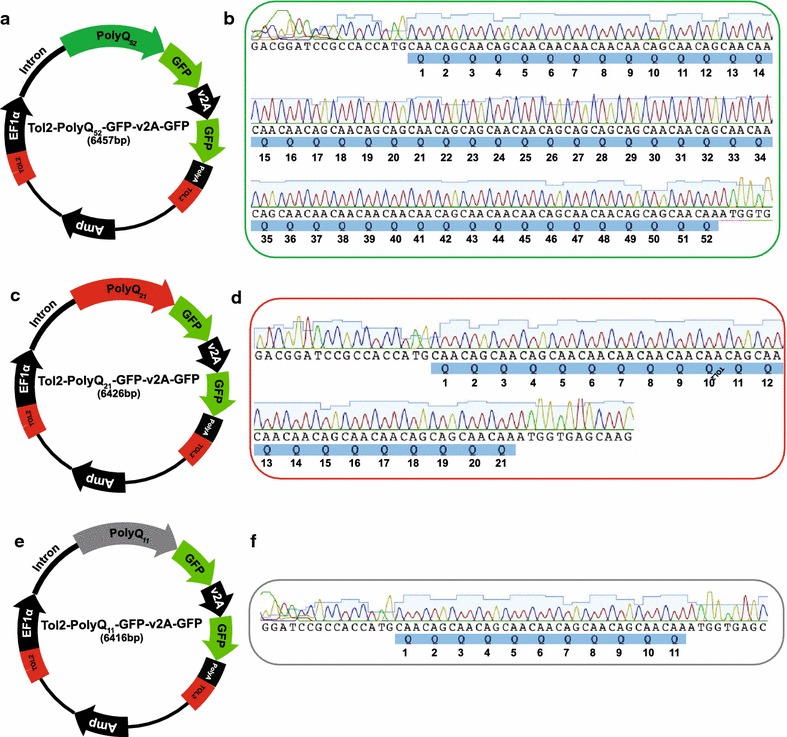

Vector map and sequence analysis of the constructs coding for Q52, Q21 and Q11-GFP generated by PCR based excision amplification. a Vector map of Tol2-Q52-GFP-v2A-GFP construct. b Chromatograph of the Q52 construct. c Vector map of Tol2-Q21-GFP-v2A-GFP construct. d Chromatograph of the Q21 construct. e Vector map of Tol2-Q11-GFP-v2A-GFP construct. f Chromatograph of the Q11 construct
