ZFIN Image: Wafer et al., 2017, Figure 2


Figure Caption

Figure 2

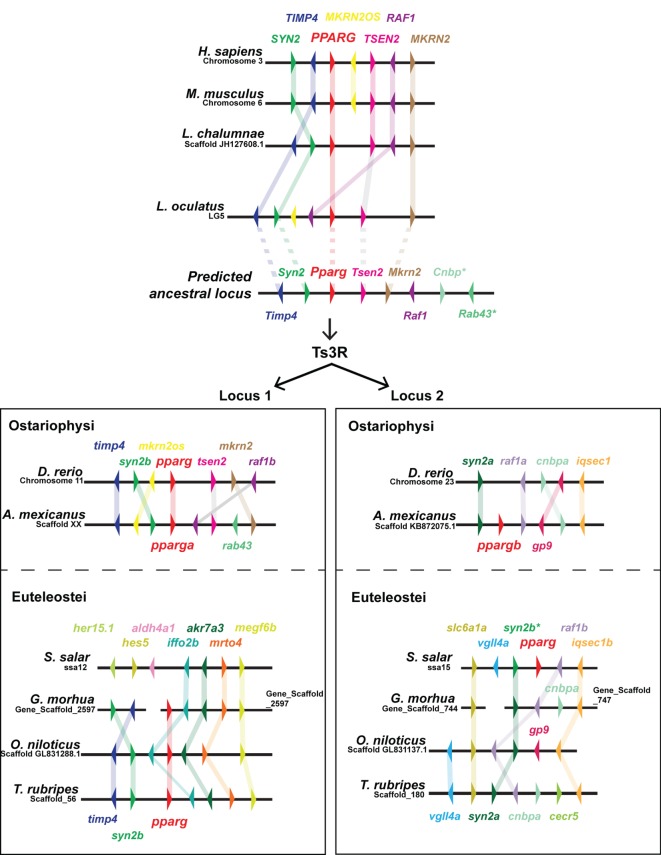

Extensive shared synteny between mammals and fish at the Peroxisome proliferator-activated receptor (PPARG) locus. The predicted ancestral locus was inferred from comparing the loci documented in the figure, together with the chondrichthyan elephant shark (Callorhinchus milii) locus (not shown). The C. milii locus contained Cenp and Rab43 genes (indicated with an asterisk). Ts3R indicates the teleost-specific genome duplication. Note the inversion of TIMP4 and SYN2 upstream of PPARG in the mammalian lineage. Duplicated raf1 paralogs (raf1a and raf1b) are only retained in zebrafish and cavefish.
