Figure 3

ID: ZDB-IMAGE-190723-1804
Publication: Le et al., 2011 - Conserved Regulation of p53 Network Dosage by MicroRNA-125b Occurs through Evolving miRNA-Target Gene Pairs
All Figures: Figures for Le et al., 2011


Figure Caption

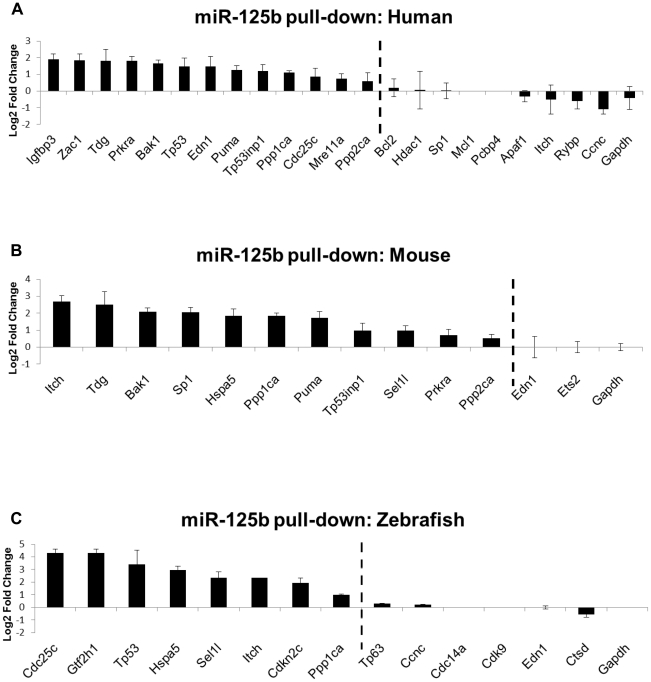

Figure 3 Direct binding of miR-125b to p53 network targets.

Biotinylated miR-125b was used as bait to pull-down mRNAs bound to miR-125b, using streptavidin-conjugated magnetic beads. The mRNAs were quantified by qRT-PCR, normalized to Gapdh, and then compared relative to the same mRNA species pulled down by a biotinylated C. elegans negative control microRNA. The enrichment of mRNAs bound to miR-125b is presented as mean log₂ fold change ± s.e.m. (n≥3 biological replicates). (A) Human: 13 out of 22 candidate targets were significantly enriched by miR-125b pull-down in human primary lung fibroblasts (hLF) 24 hours after transfection. (B) Mouse: 11 out of 13 candidate targets were significantly enriched by miR-125b pull-down in mouse 3T3 fibroblasts 24 hours after transfection. (C) Zebrafish: 8 of 14 candidate targets were significantly enriched by miR-125b pull-down in zebrafish embryos 24 hours after injection. Dashed line: cutoff for genes that were significantly enriched (Log₂ Fold change > 0.5, P<0.05).
