Figure 6

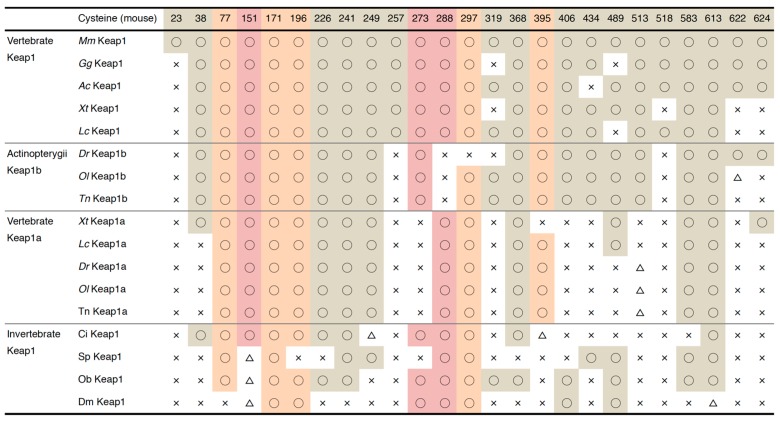

A summary of the cysteine residues of Keap1. The conservation of each cysteine is indicated as follows ○: conserved; △: not conserved but cysteine exists within three amino acids; ×: not conserved. Sensor cysteines are shaded in red, and cysteine residues conserved among Kelch family proteins in mice are shaded in orange.
