Fig. 6

ID: ZDB-IMAGE-190723-1531
Publication: Parker et al., 2019 - A Hox-TALE regulatory circuit for neural crest patterning is conserved across vertebrates
All Figures: Figures for Parker et al., 2019


Figure Caption

Fig. 6

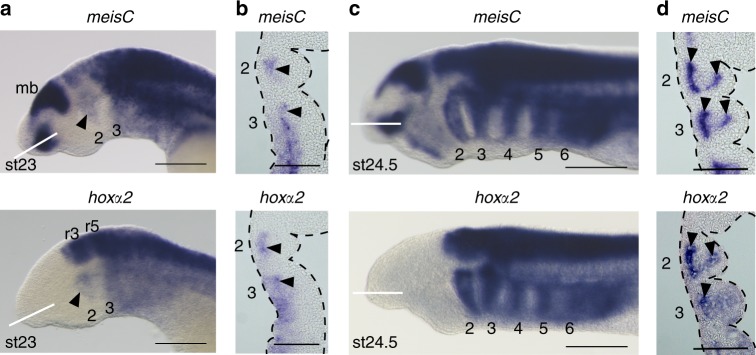

Endogenous expression of meisC in neural crest (NC) overlaps with that of hoxα2 in lamprey embryos. a Lateral views (a, c) and frontal sections (b, d) are shown for embryos at st23 (a, b) and st24.5 (c, d). White lines in a and c denote planes of sections in b and d. Pharyngeal arches are numbered, arrows denote expression in NC. Scale bars: 200 μm (a, c); 100 µm (b, d). mb, mid-brain
