Figure 4

ID

ZDB-IMAGE-190723-1476

Genes

EGFP

Publication

Chrispijn et al., 2019 - Loss of the Polycomb group protein Rnf2 results in derepression of tbx-transcription factors and defects in embryonic and cardiac development

All Figures

Figures for Chrispijn et al., 2019


Figure Caption

Figure 4

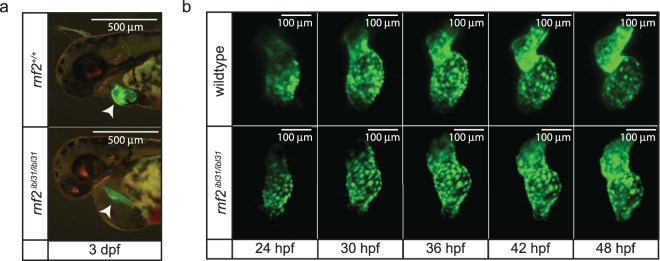

Zebrafish rnf2 mutant embryos show cardiac looping defects. (a) Fluorescent images of wildtype and rnf2 mutant sibling embryos in a Tg(myl7::GFP) background at 3 dpf. Scale bar is 500 µm. (b) Stills of live-imaging by light sheet microscopy of wildtype and rnf2 mutant hearts in a Tg(myl7::GFP) background starting at 1 dpf. Scale bar is 100 µm.
