Figure 6

ID

ZDB-IMAGE-190723-1316

Genes

Publication

Araya et al., 2019 - Cdh2 coordinates Myosin-II dependent internalisation of the zebrafish neural plate

All Figures

Figures for Araya et al., 2019


Figure Caption

Figure 6

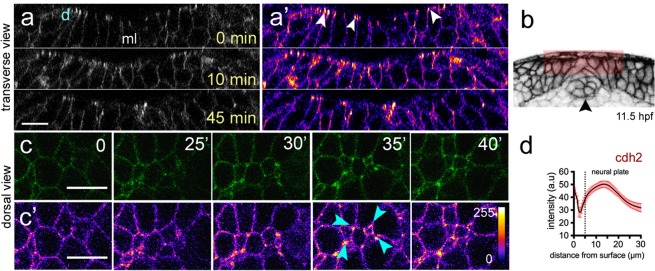

Cdh2 distribution during neural plate internalisation. (a,a’) Confocal transverse plane views of Cdh2-GFP at the dorsal surface of the neural plate. Cdh2-GFP is expressed throughout the cell membranes but is enriched at the dorsal surface (arrowheads). d, indicates dorsal surface. (b) Diagram indicating location of transverse views shown in (a,a’). (c,c’) Time-lapse frames of confocal images in dorsal view of the dorsal surface of the neural plate show that Cdh2-GFP is enriched at superficial surface in neural plate cells and at multi-cell interfaces. Fire lookup table indicating intensity values (0–255) in (c’). (d) Quantification of Cdh2-GFP intensity at different depths of the neural plate (n_embryos = 4). Scale bars, 10 µm.
