ZFIN Image: Gaulke et al., 2019, Fig. 4


Figure Caption

Fig. 4

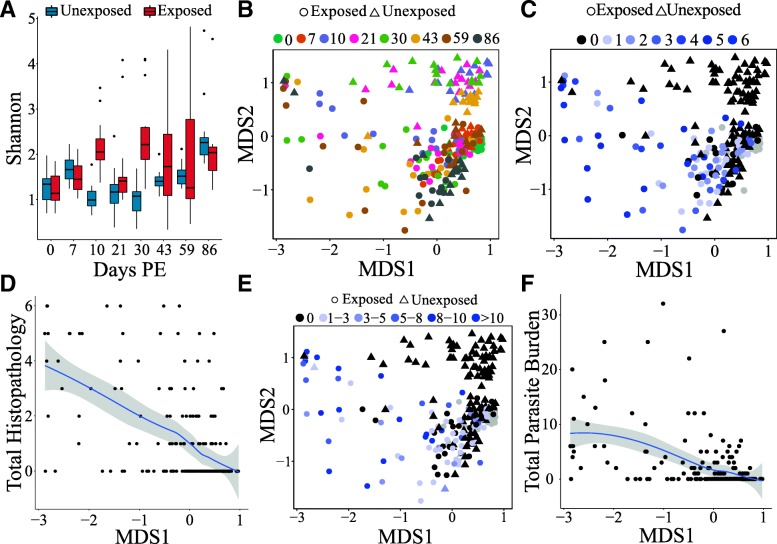

Pseudocapillaria tomentosa exposure is associated with altered microbiome composition. a Shannon entropy in exposed (red boxes) and unexposed animals. Nonmetric multidimensional scaling plots of exposed and unexposed microbiomes colored by b days post exposure, c total histopathology score (gray points = N/A), and e total parasite burden (gray points = N/A). Correlations between d total histopathology score and MDS1 and f total parasite burden and MDS1. Blue lines indicate the loess best-fit line and the shaded gray area represents the standard error
