Figure Caption

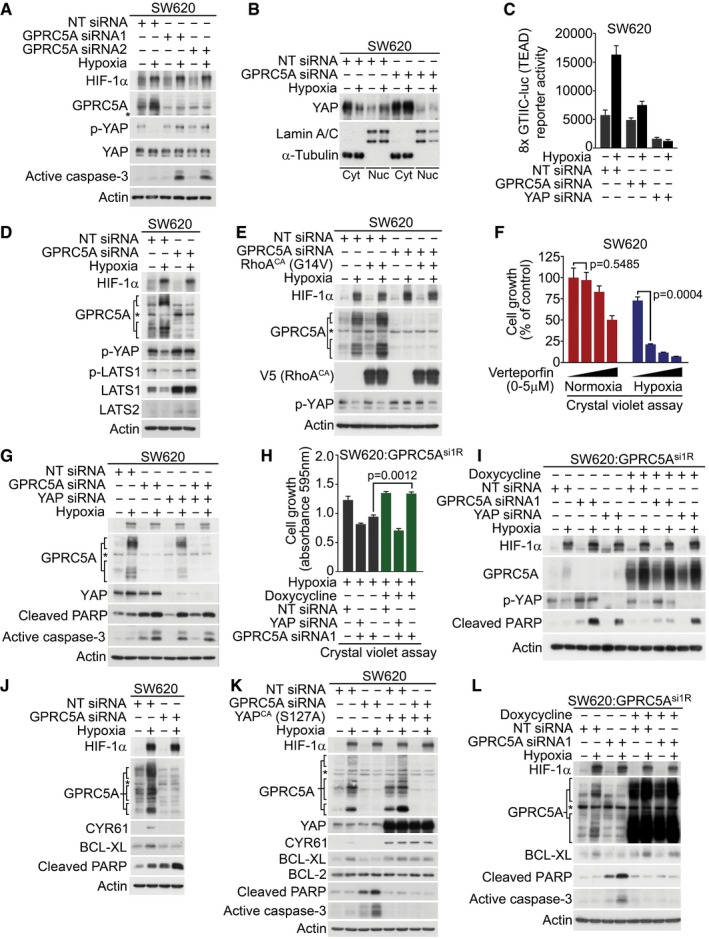

4 GPRC5A promotes hypoxic cell survival via a novel HIF‐GPRC5A‐YAP axis

A

Hypoxia‐induced YAP stabilisation via Ser397 dephosphorylation was abrogated in GPRC5A‐depleted cells.

B

Hypoxia‐induced nuclear localisation of YAP was attenuated in GPRC5A‐depleted cells.

C

Hypoxia stimulated TEAD activity (8× GTIIC‐luc reporter), but this effect was reduced by GPRC5A depletion. A representative triplicate experiment is shown (n = 3).

D

Hypoxia reduced LATS activity and expression, but this was prevented by GPRC5A depletion.

E

Constitutively active RhoA (G14V) expression restored YAP stabilisation (Ser397 dephosphorylation) by hypoxia in GPRC5A‐depleted cells.

F

The YAP/TEAD inhibitor verteporfin selectively inhibited cancer cell survival in hypoxia by crystal violet assay (n = 3 independent experiments).

G

YAP knockdown was sufficient to induce caspase‐3 activation/PARP cleavage in hypoxia and was not further enhanced by GPRC5A depletion.

H

Crystal violet assays show that YAP was required downstream of GPRC5A to promote cell survival. GPRC5A‐depleted cells were rescued by expression of an siRNA‐resistant GPRC5A cDNA (GPRC5A^si1R), but this was prevented by co‐depletion of YAP (n = 3 independent experiments).

I

Expression of an siRNA‐resistant GPRC5A rescued the critical phenotypes of GPRC5A depletion. GPRC5A^si1R expression prevented PARP cleavage in hypoxia as well as restoring hypoxia‐induced YAP stabilisation (Ser397 dephosphorylation); these phenotypes were reversed by YAP depletion.

J

GPRC5A depletion attenuated hypoxia‐induced BCL‐XL expression.

K

Constitutively active YAP (S127A) expression induced BCL‐XL expression and prevented caspase‐3 activation/PARP cleavage by GPRC5A depletion in hypoxia.

L

GPRC5A^si1R expression restored BCL‐XL expression and prevented the appearance of cleaved caspase‐3 induced by GPRC5A depletion in hypoxia.

Data information: Asterisks (*) indicate non‐specific band. Level adjustments were made to images in Adobe Photoshop post‐acquisition for clarity (equal changes applied to the entire image). Representative examples of n = 3 independent experiments are shown; data are presented as mean ± SEM. One‐way ANOVA with Tukey's multiple comparisons test was carried out in (F and H).Source data are available online for this figure.
