Fig. S10

ID: ZDB-IMAGE-190626-40
Publication: Perez et al., 2019 - Mutations in the microtubule-associated protein MAP11 (C7orf43) cause microcephaly in humans and zebrafish
All Figures: Figures for Perez et al., 2019


Figure Caption

Fig. S10

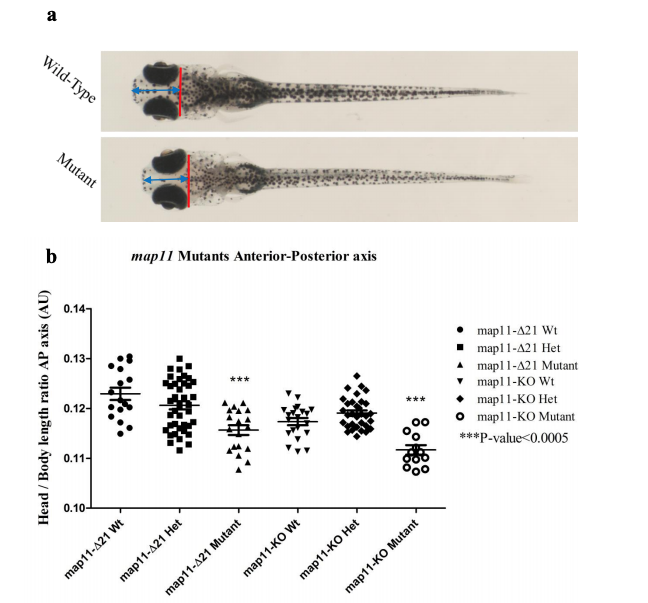

Shortening of the anterior-posterior axis of mutant zebrafish heads. a) A scheme demonstrating the anterior-posterior length measures done for zebrafish. The head length was defined as the length measured between the middle of a virtual line crossing the plan posterior to zebrafish eyes (in red) and the zebrafish most anterior part (blue arrowed line). Zebrafish body length was measured from the edge of the caudal fin to the zebrafish most anterior part (not shown in scheme). All measures were done using image J software. b) A graph showing a significant shortening of the anterior-posterior axis of mutant zebrafish heads.
