Fig. 6

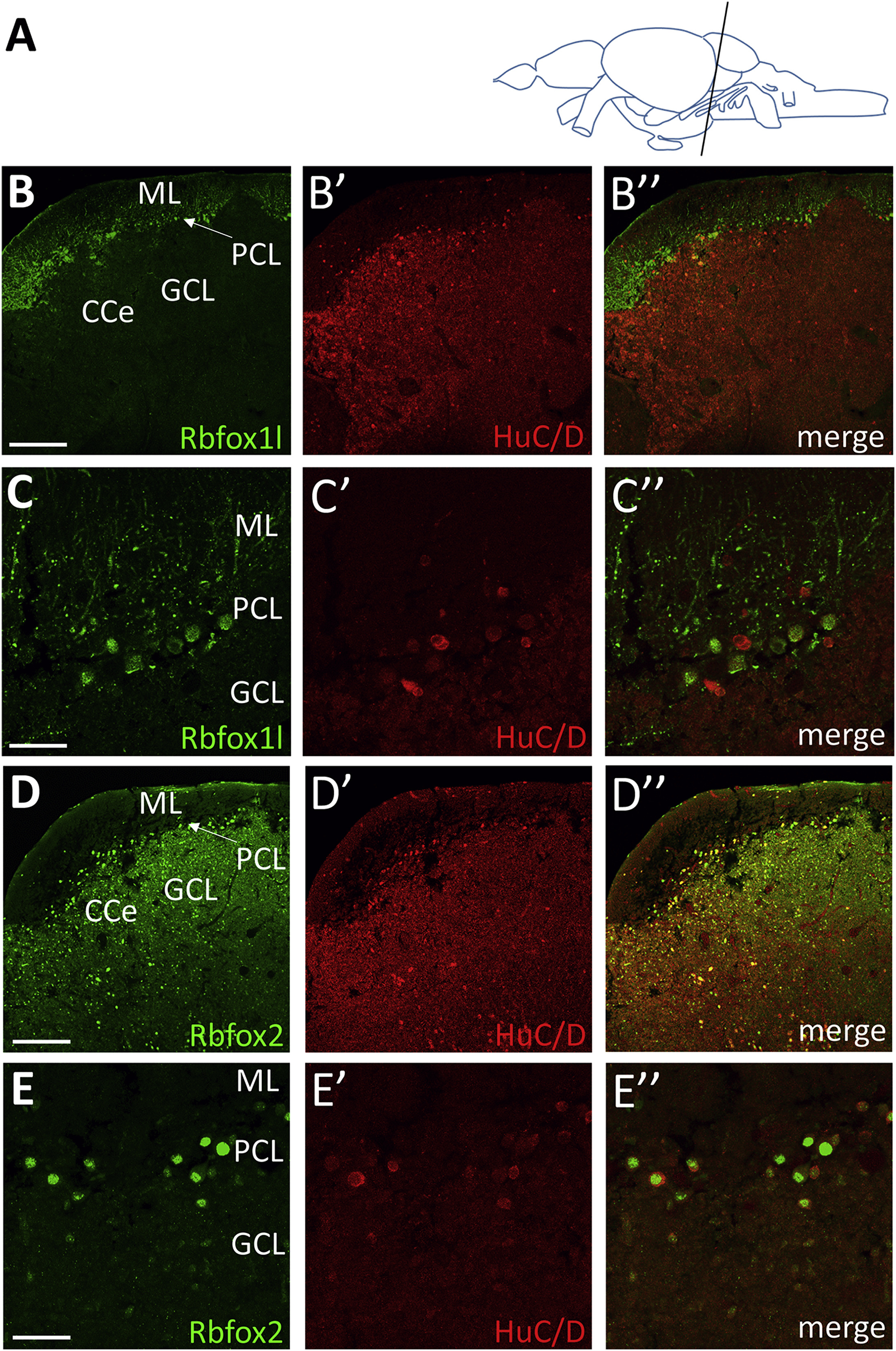

Rbfox1l and Rbfox2 are expressed in the Purkinje cell layer of the cerebellum. (A) Schematic of adult zebrafish brain indicating plane of section through the cerebellum (lateral view). (B-B″) Rbfox1l is expressed in the Purkinje cell layer (PCL) of the cerebellum (CCe, corpus cerebelli); coronal section. (C-C″) Higher magnification view showing Rbfox1l expression in a subset of neurons in the PCL, within the cytoplasm and dendrites of these cells that extend into the molecular layer (ML). (D-D″) Rbfox2 is expressed broadly in the cerebellum, in neurons of the granule cell layer (GCL) and in the PCL; coronal section. (E-E″) Higher magnification view showing Rbfox2 expression in PCL neurons; coronal section. Abbreviations: CCe, corpus cerebelli; ML, molecular layer; PCL, Purkinje cell layer; GCL, granule cell layer. Scale bar in B, D is 150 μm, and in C, E is 30 μm.
