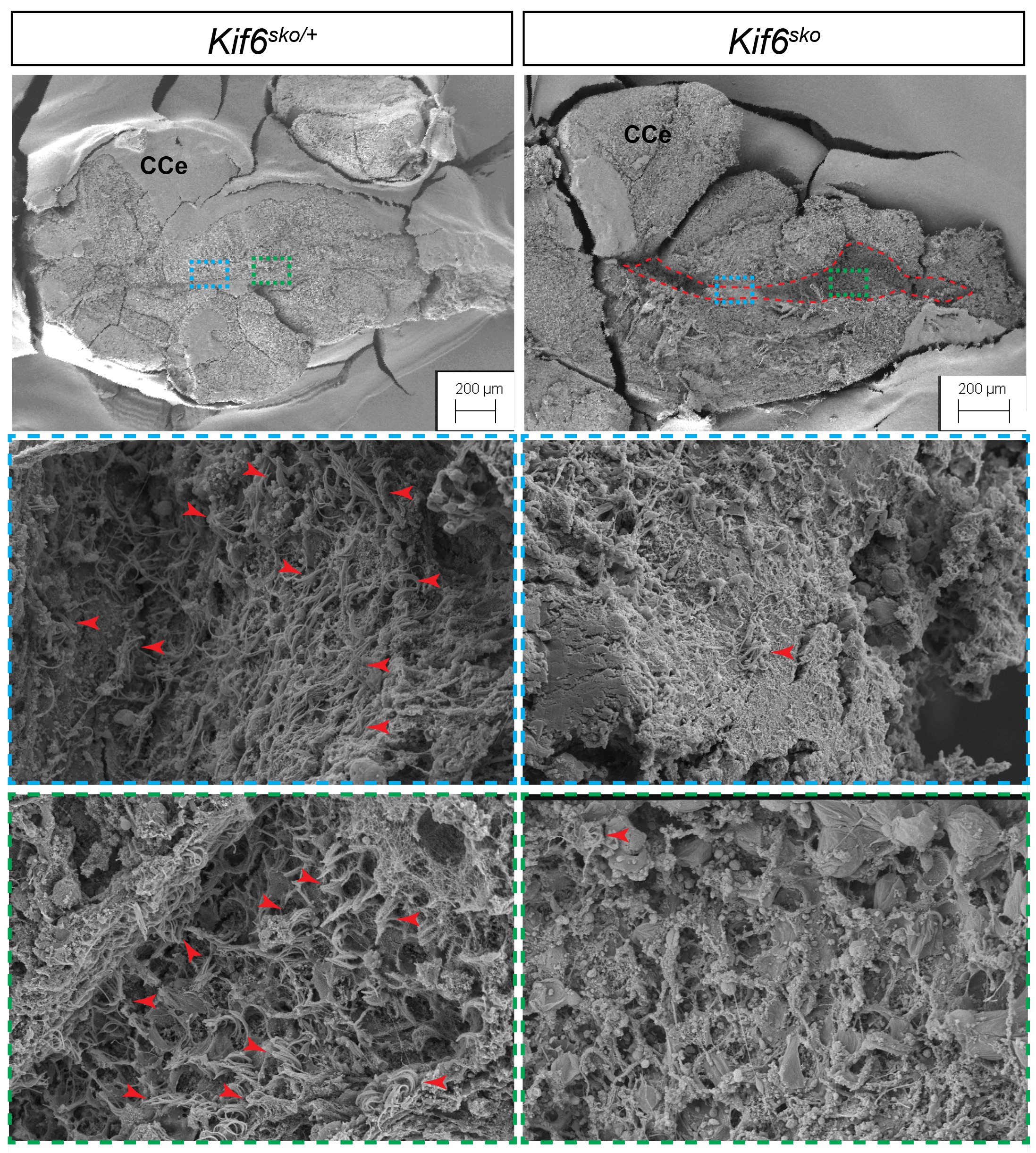

SEM of ventricle in kif6^sko mutant zebrafish display dilation of the ventricular system and loss of ependymal cell cilia.

Scanning Electron Microscopy of zebrafish brain shows dilation of rhombencephalic (blue box) and telencephalic (green box) ventricles (red dotted line) indicative of hydrocephaly. Higher magnification images reveal loss of ependymal cell cilia tufts (red arrowheads) in kif6 zebrafish mutants when compared with heterozygous counterparts (red arrowheads). Scale bars 20μM and 200μM. (CCe: Cerebellum)
