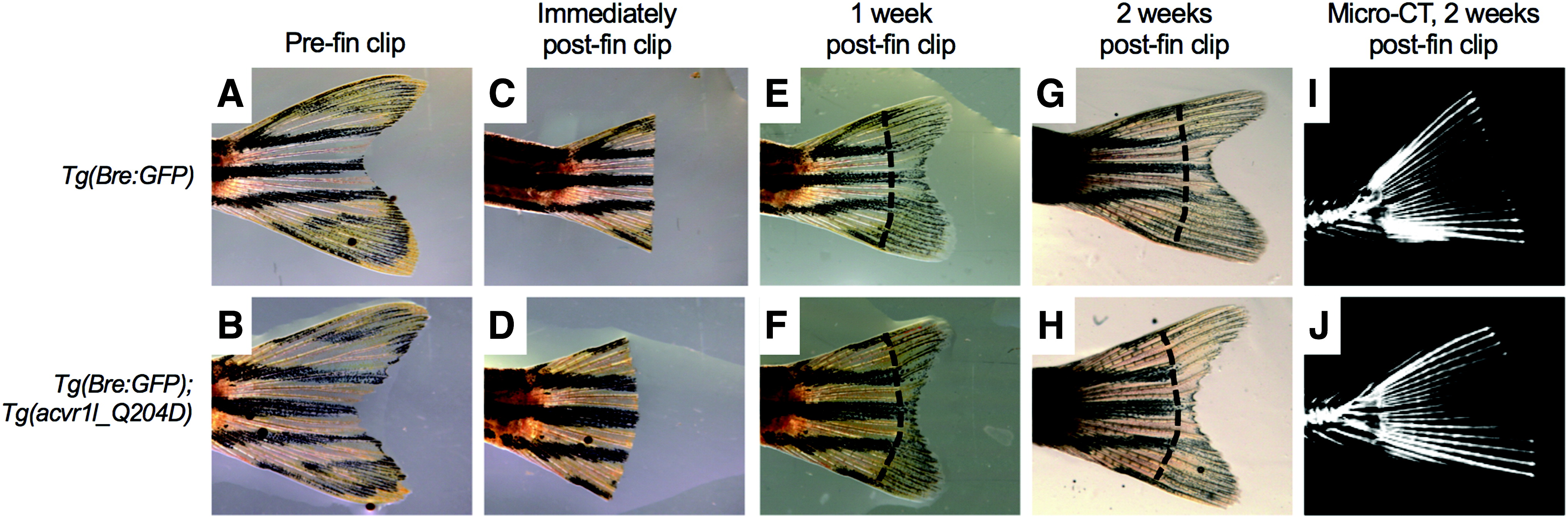

Fig. 5 Caudal fin clip did not result in HO formation at injury site in heat-shocked Tg(acvr1l_Q204D) zebrafish by 2 wpi. Caudal fin clip-injured adult heat-shocked Tg(Bre:GFP) and Tg(Bre:GFP); Tg(acvr1l_Q204D-mCherry) zebrafish were imaged with bright field microscopy before fin clip (A, B), immediately after fin clip (C, D), and at 1 wpi (E, F) and 2 wpi (G, H). The original site of the fin clip is marked by dashed line(E–H). Zebrafish were imaged by micro-CT (I, J) at 2 wpi before euthanization. n = 3 zebrafish per genotype.
