Fig. S4

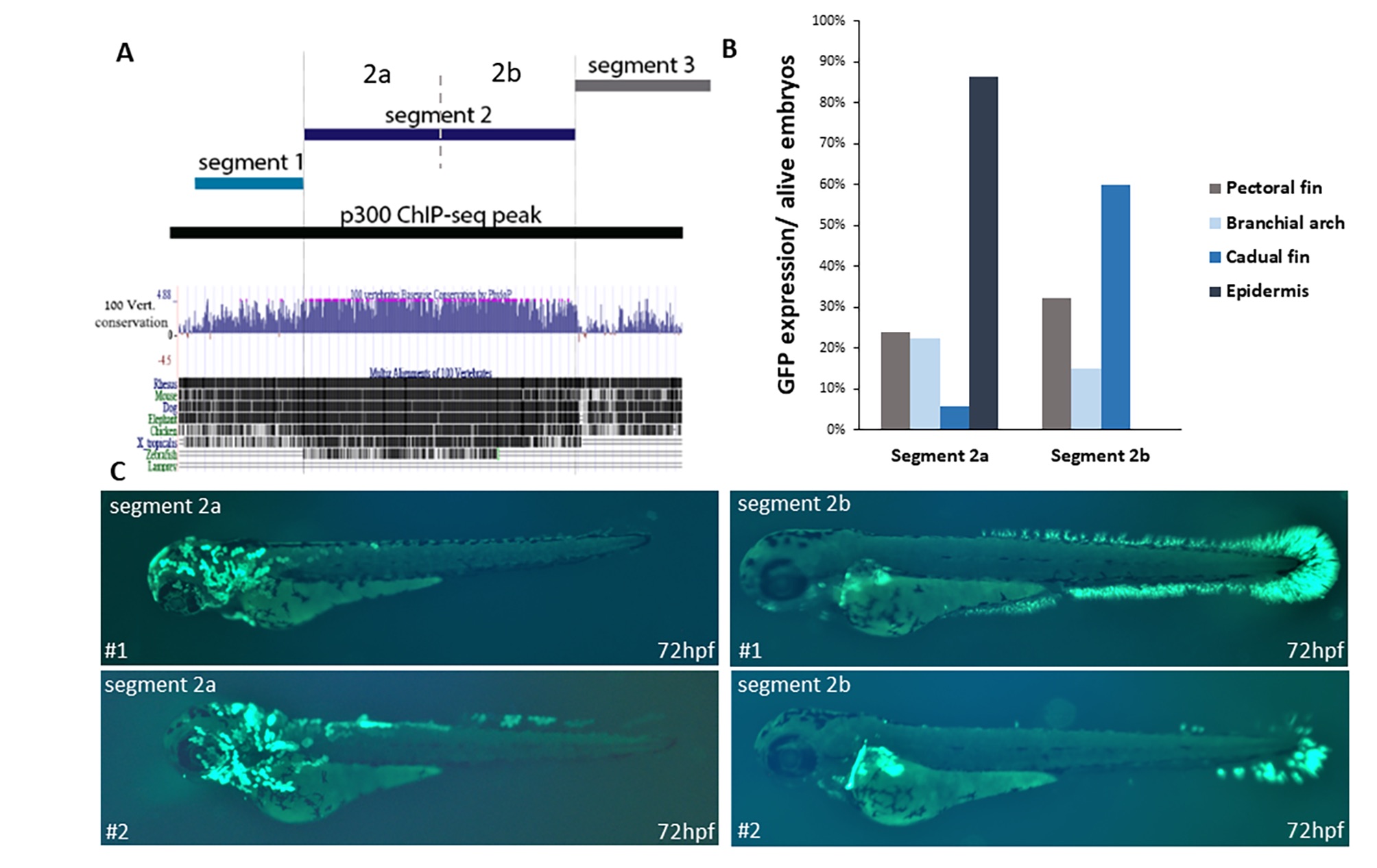

Additional segmental analysis of eTw-5 enhancer function in zebrafish embryos at 72 hpf.
(A) The eTw-5 segment 2 was divided into segments 2a and 2b. (B) A graph displaying the number of embryos presenting GFP expression in the pectoral and caudal fins and branchial arch out of all live embryos at 72 hpf. (C) Zebrafish enhancer assay results for eTw-5 segments: segment 2a drives GFP expression in the epidermis surrounding the head and segment 2b drives GFP expression in the pectoral and caudal fins.
