Fig. S2
Functional enhancers in the HDAC9-TWIST1 locus characterized using zebrafish.

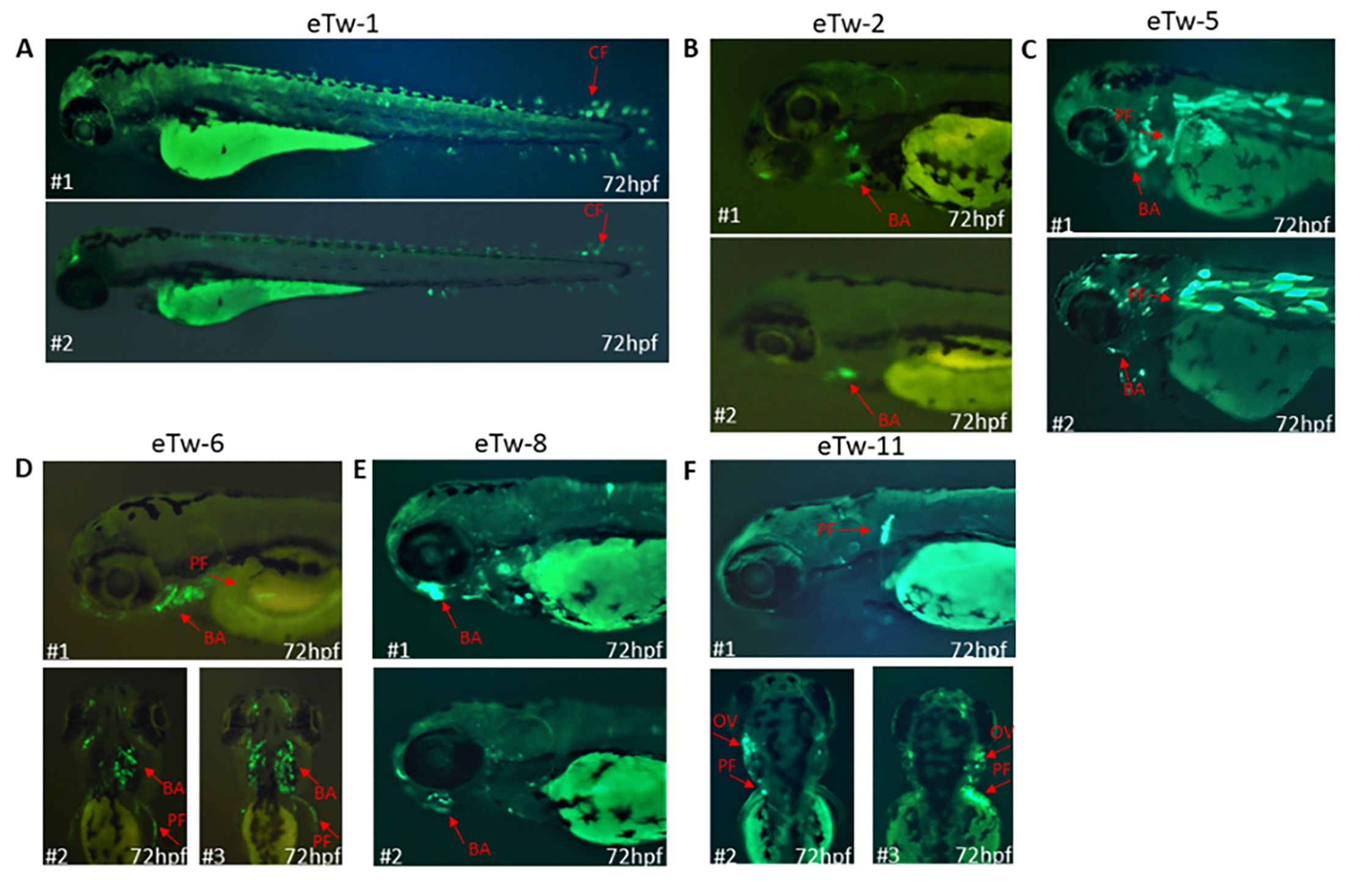

(A) eTw-1 drives GFP expression in the caudal fin. (B) eTw-2 drives GFP expression in the branchial arch. (C) eTw-5 drives GFP expression in the pectoral fin, branchial arch and somitic muscles. (D) eTw-6 drives GFP in the pectoral fin and branchial arch. Top: lateral view. Bottom: ventral view. (E) eTw-8 drives GFP in expression in the branchial arch. (F) eTw-11 drives GFP expression in the base of the pectoral fin, in the branchial arch and in the otic vesicle. Top: lateral view. Bottom: dorsal view.
