ZFIN Image: Gurung et al., 2018, Fig. 7


Figure Caption

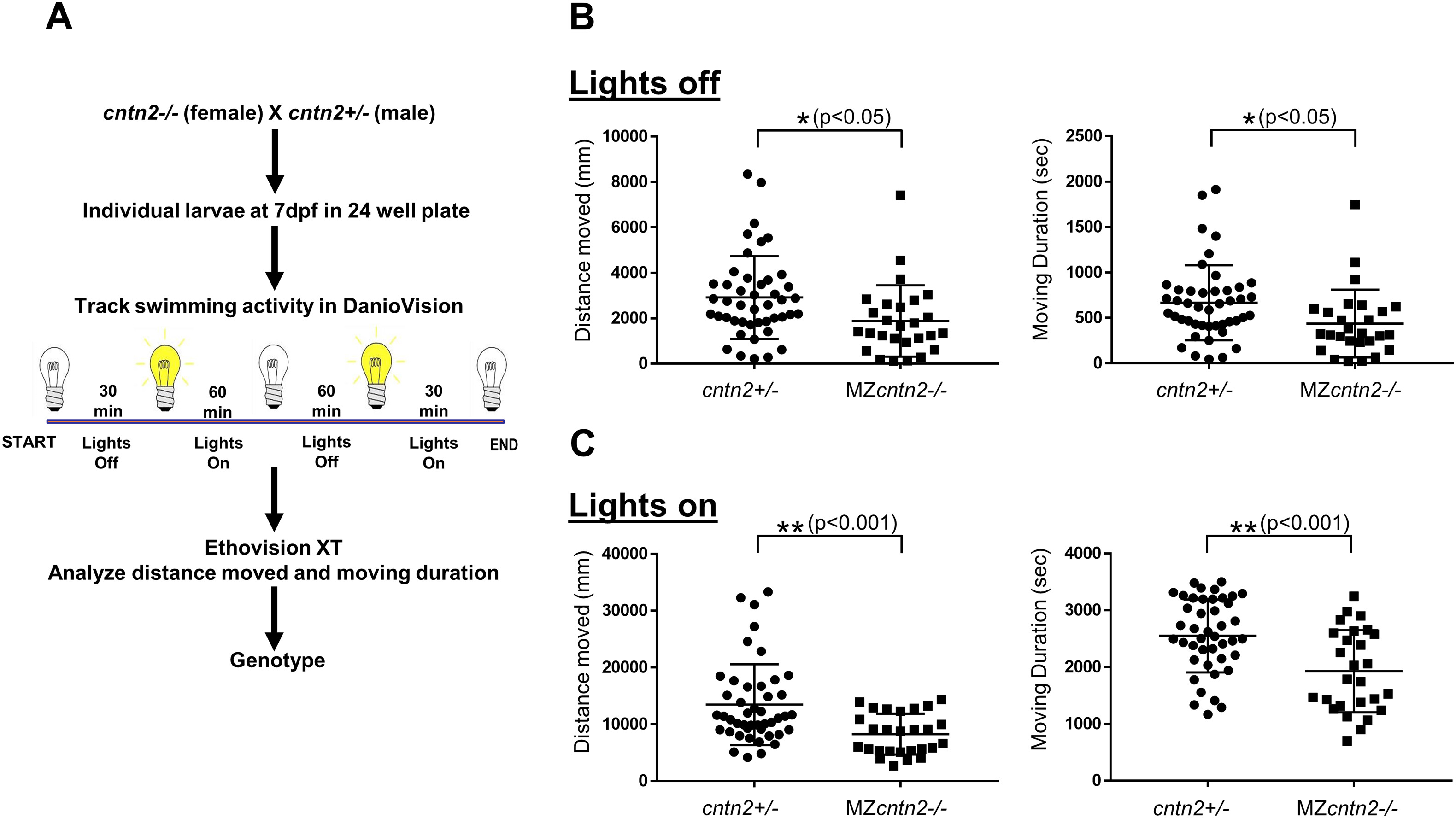

Fig. 7 cntn2 mutants exhibit swimming deficits.

(A) Swimming assay and analysis. (B, C) Distance moved and moving duration are compared between cntn2+/− heterozygote and MZcntn2−/− mutant larvae during Lights off (B) and Lights on (C) phases. There were significant differences between cntn2+/− (n = 43) and MZcntn2−/− (n = 27). MZcntn2−/− larvae moved less than cntn2+/− siblings during both lights off (unpaired t-test, *p < 0.05) and lights on (unpaired t-test with Welch's correction, **p < 0.001) phases (B, C). MZcntn2−/− larvae also moved for shorter duration compared to cntn2+/− siblings during both lights off (unpaired t-test, *p < 0.05) and lights on (unpaired t-test, **p < 0.001) phases (B, C). Error bars show Mean ± SD.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 152, Gurung, S., Asante, E., Hummel, D., Williams, A., Feldman-Schultz, O., Halloran, M.C., Sittaramane, V., Chandrasekhar, A., Distinct roles for the cell adhesion molecule Contactin2 in the development and function of neural circuits in zebrafish, 1-12, Copyright (2018) with permission from Elsevier. Full text @ Mech. Dev.
