Fig. S3

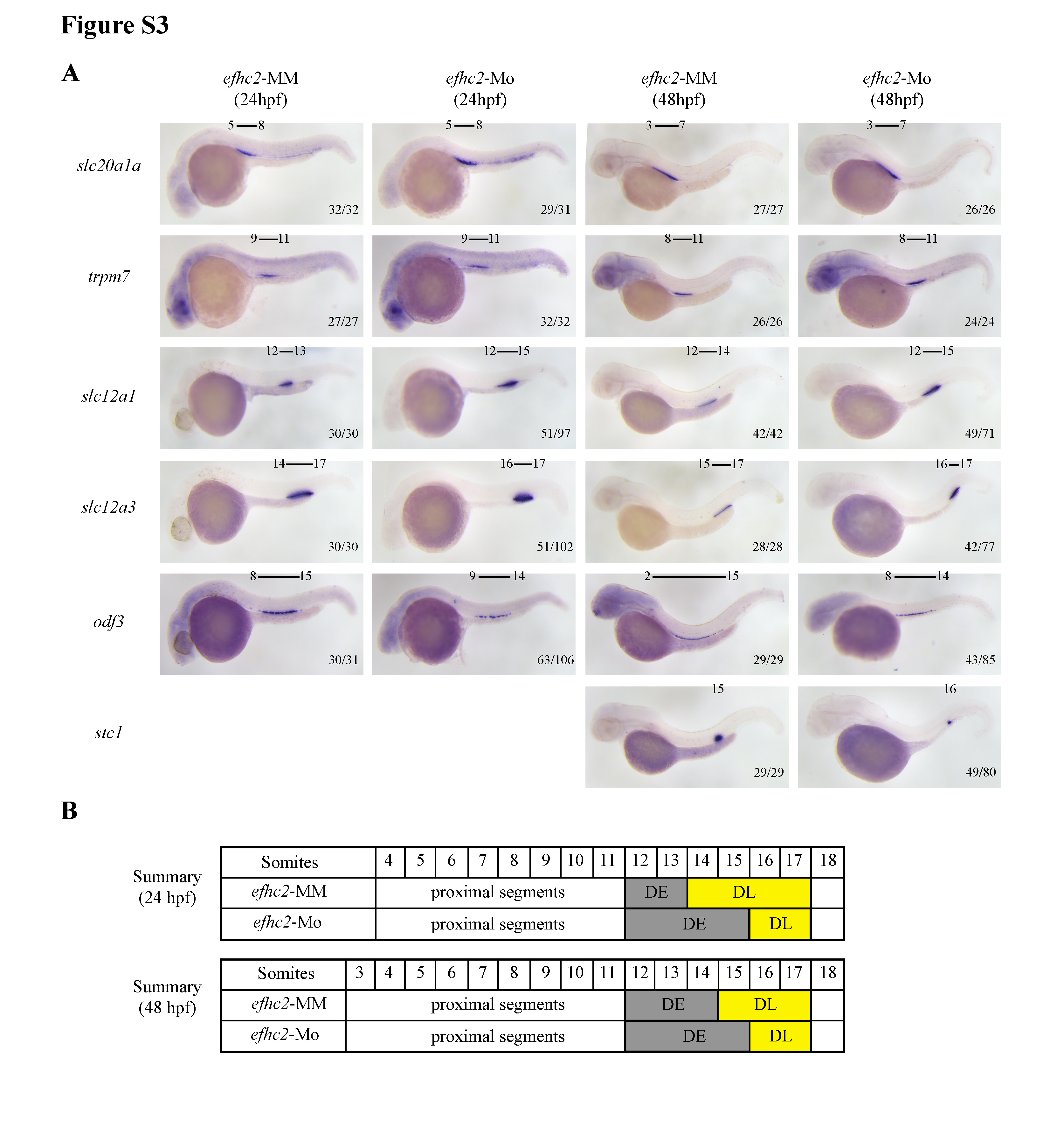

Efhc2 knock-down results in nephron segmentation defects. (A) WISH for pronephros segment or MCC specific markers on 24 and 48 hpf morpholino injected embryos. Expression of slc20a1a (PCT), trpm7 (PST), slc12a1 (DE), slc12a3 (DL), stc1 (CS) and odf3 (MCC) in efhc2 mismatch control (efhc2-MM) and splice-blocking morpholino (efhc2-Mo) injected embryos. (B) Summary of defects caused by Efhc2 knock-down.
