ZFIN Image: He et al., 2018, Fig. 2


Figure Caption

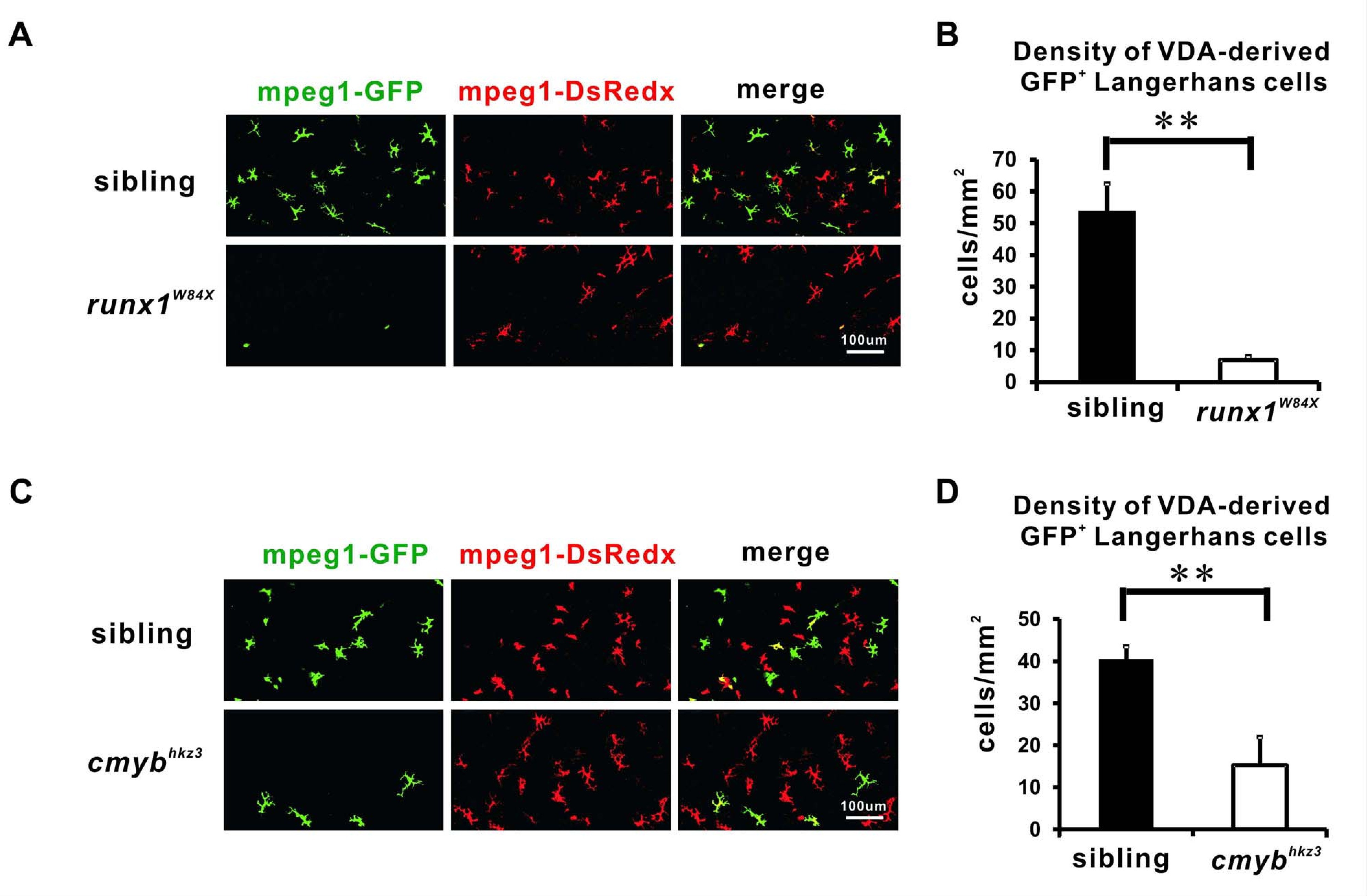

Fig. 2

The VDA-derived LCs are reduced in Runx1 and cMyb mutants.

(A) Anti-GFP staining shows that the VDA-derived LCs are significantly reduced in 12 dpf runx1^W84X mutants comparing with those in siblings. (B) Quantification of the density of the VDA-derived GFP⁺ LCs in 12 dpf runx1^W84X mutants and siblings. n = 5 for siblings and n = 6 for mutants. Error bars represent mean SEM. **p<0.01. (C) Anti-GFP staining reveals a reduction of the VDA-derived LCs in 20 dpf cmyb^hkz3 mutants comparing with size matching siblings. (D) Quantification of the density of the VDA-derived GFP⁺ LCs in 20 dpf cmyb^hkz3 mutants and size matching siblings. n = 11 and 10 for siblings and mutants respectively. Error bars represent mean SEM. **p<0.01.
