- Lawrence et al., 2018 - The mechanical impact of col11a2 loss on joints; col11a2 mutant zebrafish show changes to joint development and function, which leads to early-onset osteoarthritis.
- All Figures
- Figures for Lawrence et al., 2018
|
Figure Caption
Fig. S4

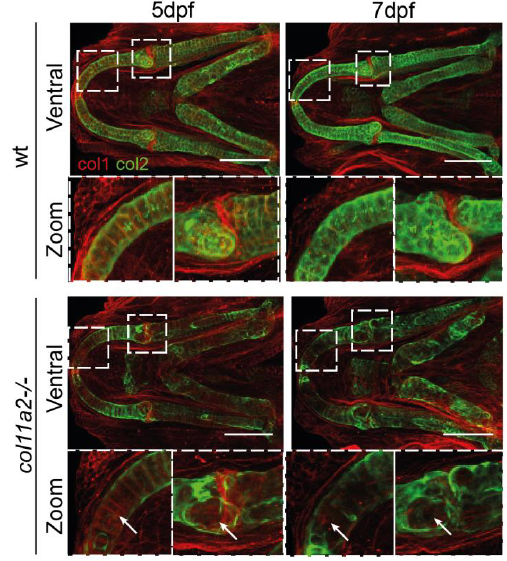

Type 1 collagen is not increased in col111a2 mutants. Immunostaining for Type 1 (red) and Type II (green) collagen in wt and col11a2 -/- at 5 and 7dpf. Dashed insets show areas of higher magnification. White arrows indicate areas of Type II collagen loss, where Type I collagen is unchanged. Scale bar = 100 µm
