ZFIN Image: Zhang et al., 2018, Fig. S1


Figure Caption

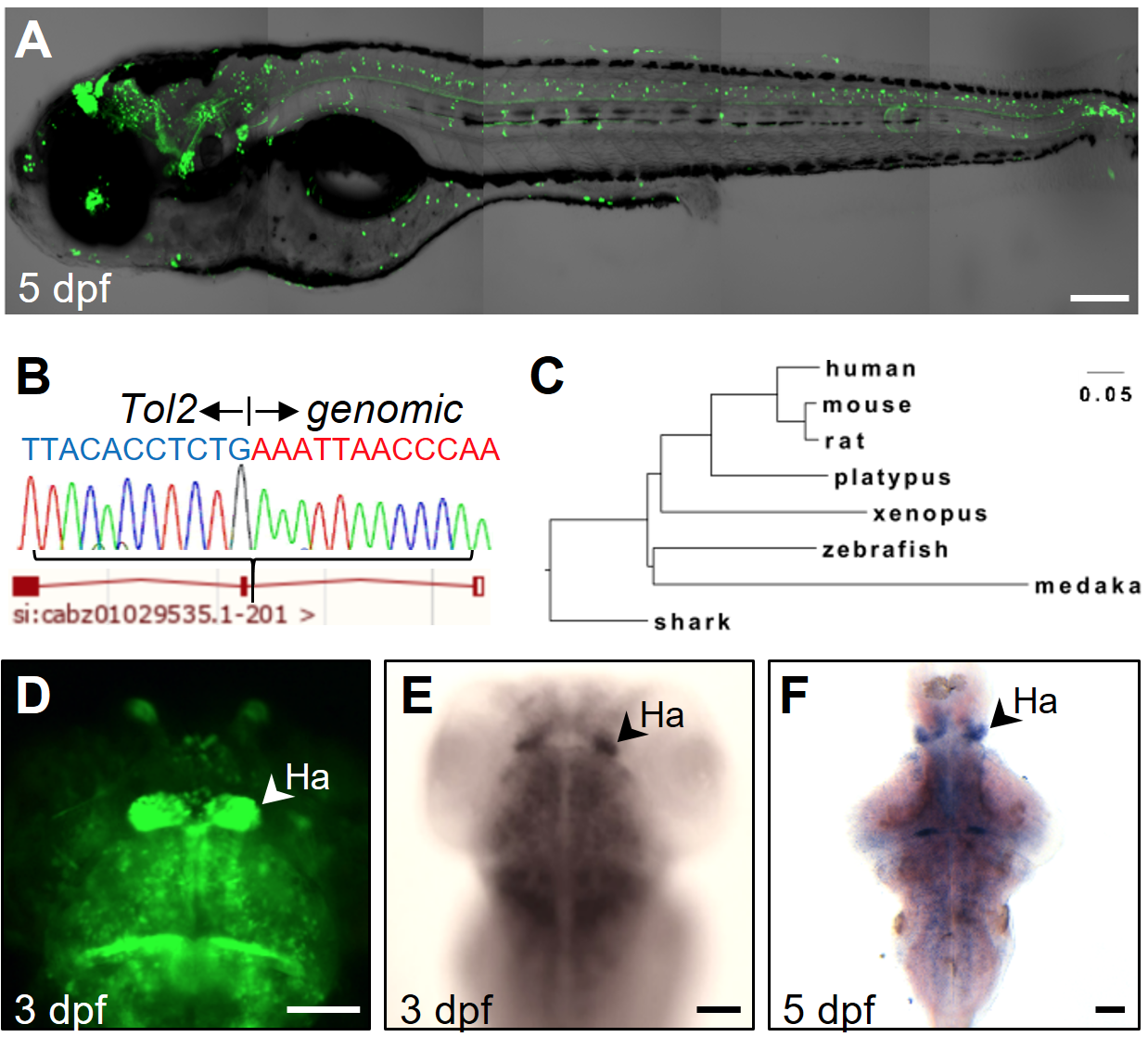

Fig. S1

ubtor/kiaa1024 gene mapping and expression.

(A) Transgenic expression of EGFP in a 5 dpf larva from the cross between the enhancer trap line Tg(ubtor:GAL4FF) and the reporter line Tg(UAS:EGFP). Larva was embedded in agarose and imaged with a confocal microscope. Five image fields were stitched together to show the full length of the animal. (B) Genomic sequences at the insertion site in the Tg(ubtor:GAL4FF) line. The Tol2-GAL4FF transgene is inserted at the second intron in the ubtor gene. (C) Phylogeny tree of Ubtor genes in various vertebrate species. No Ubtor homologs were found outside the vertebrates. (D) EGFP expression in the brain region in the ubtor enhancer trap line. Ha: habenula. Dorsal View. (E-F) In situ hybridization analysis of endogenous ubtor gene expressions at 3 dpf and 5 dpf. Dorsal View. Scale bars, 200 μm.

Figure Data

Expression / Labeling details
