Figure Caption

Fig. 3

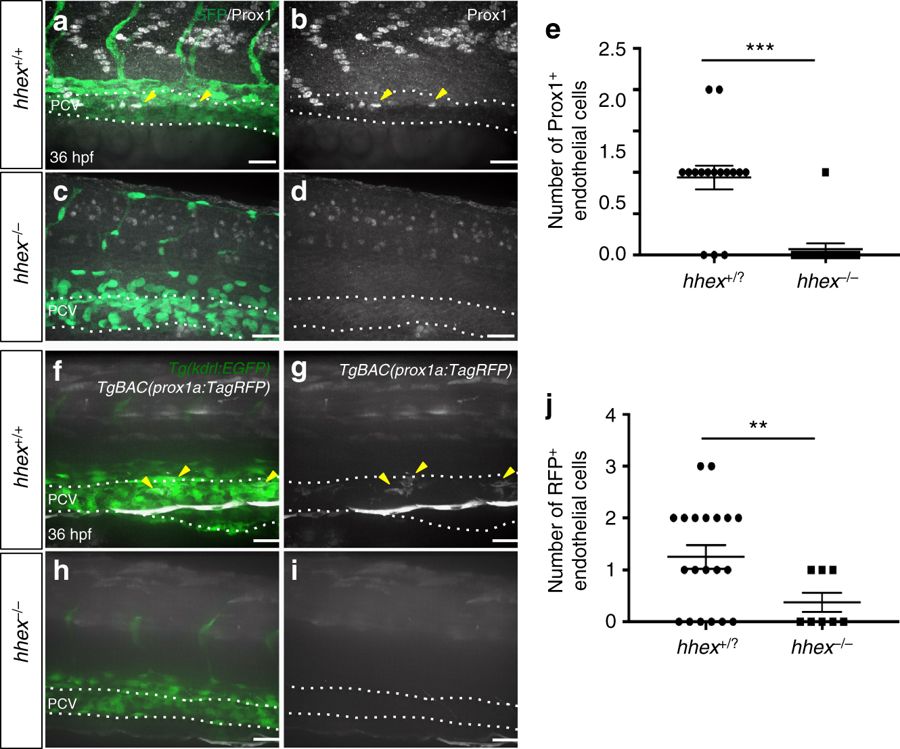

Zebrafish hhex mutants lack lymphatic precursors. a–d Whole-mount views of 36 hpf hhex^+/+ and hhex^−/− embryos immunostained for Prox1 (arrowheads point to Prox1⁺ endothelial cells in the PCV). e Quantification of the number of Prox1⁺ endothelial cells across three somites (from two field of view per embryo) in hhex^+/? (n = 8) and hhex^−/− (n = 6). f–i Whole-mount views of 36 hpf Tg(prox1a:TagRFP); hhex^+/+ and hhex^−/− embryos. hhex mutants exhibit a strong decrease in the number of RFP⁺ cells in the PCV compared to hhex^+/+ (arrowheads point to RFP⁺ endothelial cells in the PCV). j Quantification of the number of RFP⁺ endothelial cells across three somites (from two field of view per embryo) in hhex^+/? (n = 10) and hhex^−/− (n = 4). Values represent means ± s.e.m. ***P ≤ 0.001, and **P ≤ 0.01 by t-test. Scale bars: 50 μm
