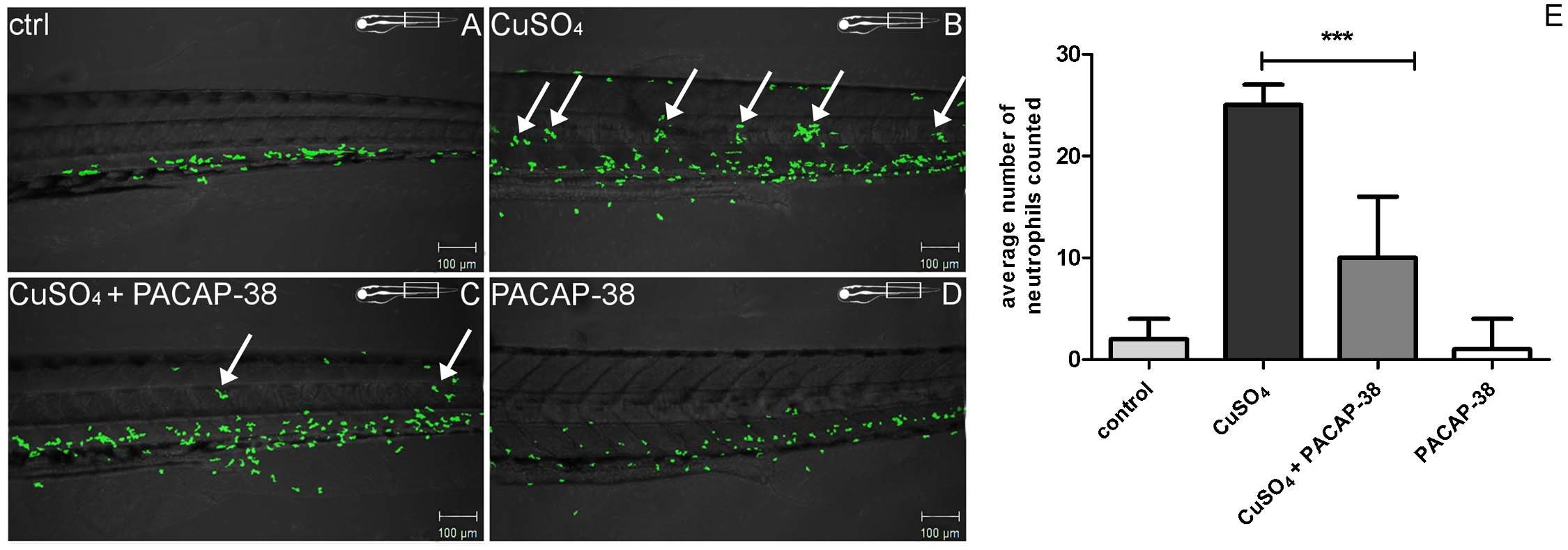

Fig. 2
A set of microphotographs and a graph documenting inhibition of neutrophil migration towards 10 µM CuSO4 exposed hair cells resulting from co-treatment of 5 dpf Tg(MPX:GFP) zebrafish larvae (exhibiting green fluorescence in neutrophils) with 100 nM PACAP-38.
(A) The control untreated larva presented normal distribution of neutrophils which were found in the ventral myotomes of the trunk and tail. (B) 10 µM CuSO4 exposure evoked the migration of the immune cells towards the midline of the body and the formation of characteristic concentrations very close to, and around, the neuromasts (arrows). (C) 100 nM PACAP-38 co-treatment resulted in the inhibition of the neutrophil migration, which was reflected by a decreased number, or complete lack of, the green fluorescent cells in the area of natural neuromast localization (arrows). (D) 100 nM PACAP-38 itself did not visibly alter the natural distribution of neutrophils. The visualization was accomplished using a Zeiss LSM-700 confocal microscope. (E) The graph presenting the influence of 100 nM PACAP-38 on the number of the neutrophils concentrated around right posterior lateral line neuromasts (PLL) (L1, LII.1, L2, LII.2, L3, L4, L5 and L6) after 10 µM CuSO4 exposure. The presented values refer to the average number of neutrophils in each group. 100 nM PACAP-38 treatment resulted in a significant, over two-fold decrease in the number of the neutrophils found singly in the area defined by notochord borders and those associated with neuromasts as compared to that determined in the 10 µM CuSO4-exposed group (one-way ANOVA, Kruskal–Wallis test with Dunn’s post-test, GraphPad Prism 5, p < 0.001). N/group = 15.
