Fig. 1

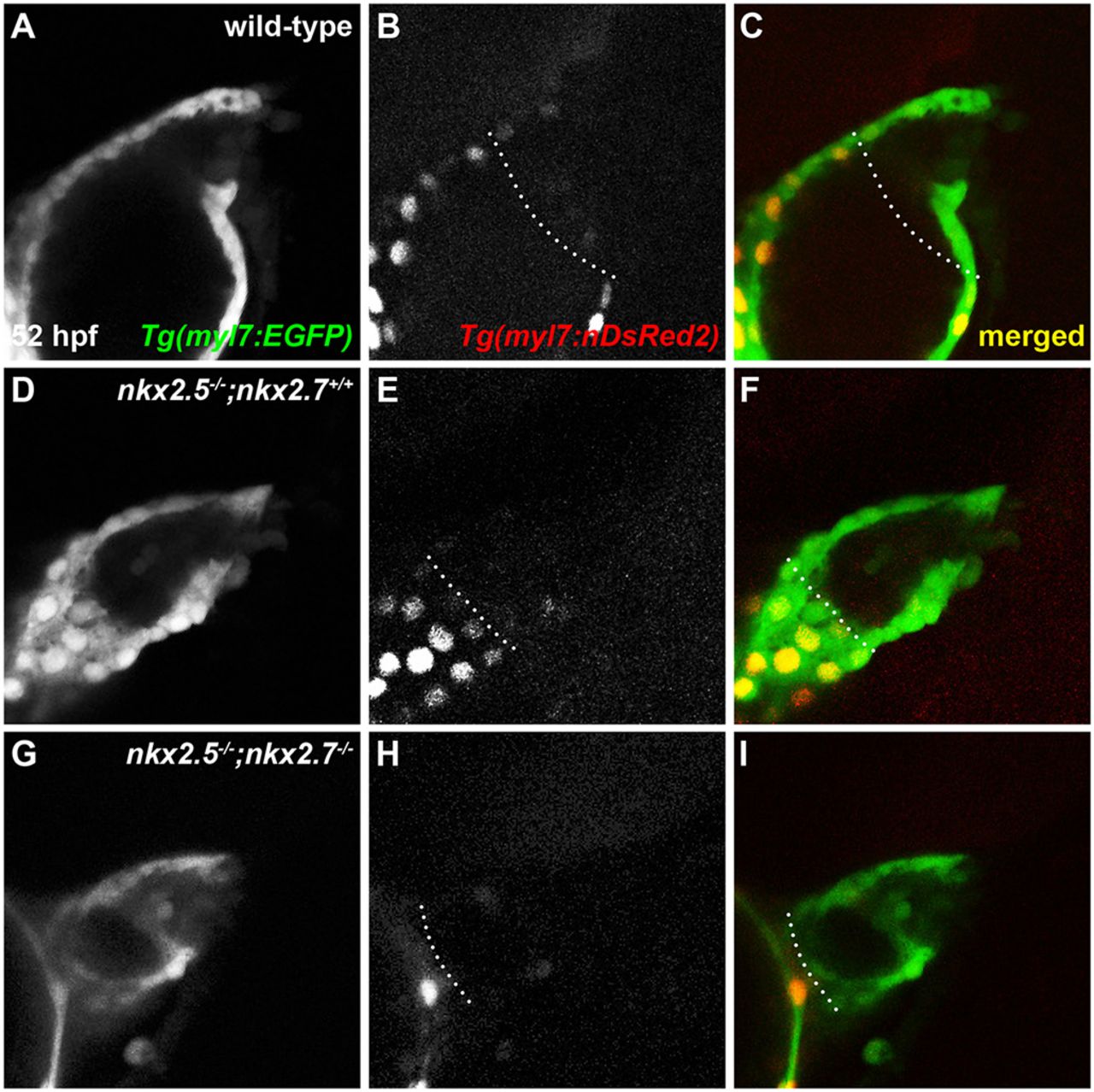

OFT size and CM numbers are reduced in nkx mutants. (A-I) Lateral view, anterior towards the right, at 52 hpf. Representative reconstructions of four z-stacks from a developmental timing assay show diminished cell numbers in the OFT of wild-type (A-C), nkx2.5−/−;nkx2.7+/+ (D-F) and nkx2.5−/−;nkx2.7−/− (G-I) embryos carrying Tg(myl7:EGFP) and Tg(-5.1myl7:nDsRed2).
