Fig. S3

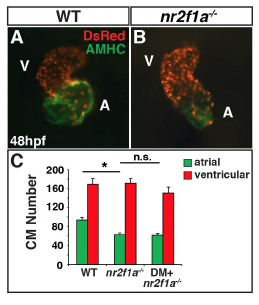

Dorsomorphin does not restore AC number in nr2f1a mutants. (A,B) IHC of hearts from WT sibling and nr2f1a mutant myl7:DsRed-NLS embryos. (C) Graph depicting AC and VC number from WT sibling (n=12), nr2f1a mutant (n=14), and nr2f1a mutant DM-treated (n=15) embryos. Cardiomyocyte numbers for WT sibling and nr2f1a mutants are the same as indicated in Fig. 2I. Asterisks indicated statistically significant difference (P<0.05) using Student’s t-test.
