Figure Caption
Fig. S3
Secondary tail appendage phenotypes

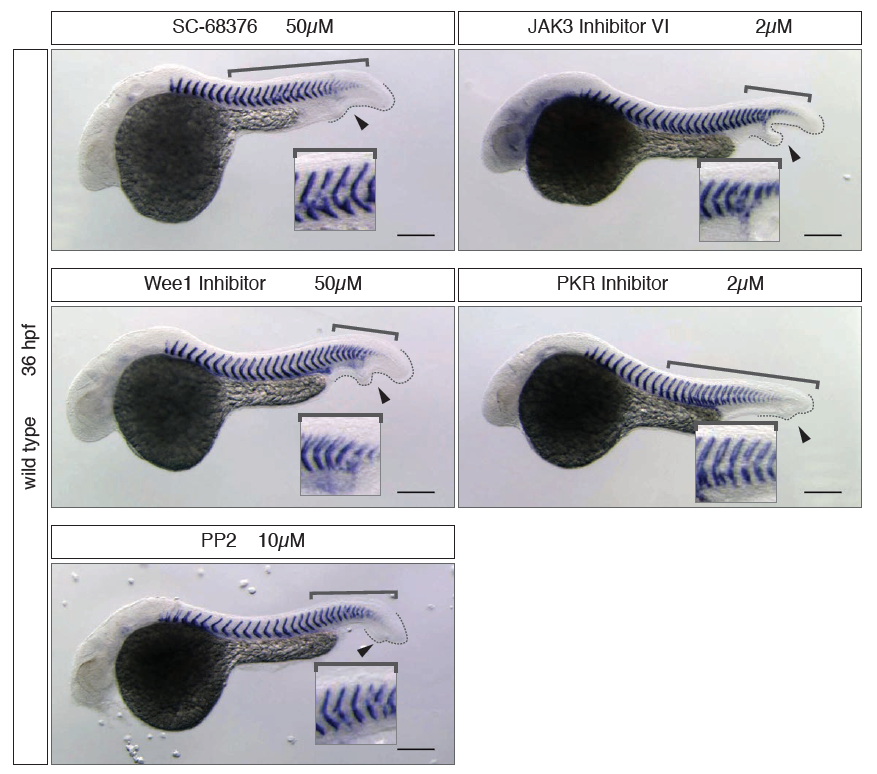

Identified hit phenotypes with direct segmentation defects according the classification used in Table 1, visible at 36 hpf after xirp2a in situ hybridization. All treatments are as labelled in the panel above the image. Anterior to the right, posterior to the left. Insets show zoom-in of the segment pattern and defects. Brackets indicate the area of the axis where segment boundary defects occurred. Dotted line outlines observed secondary tail appendage.
