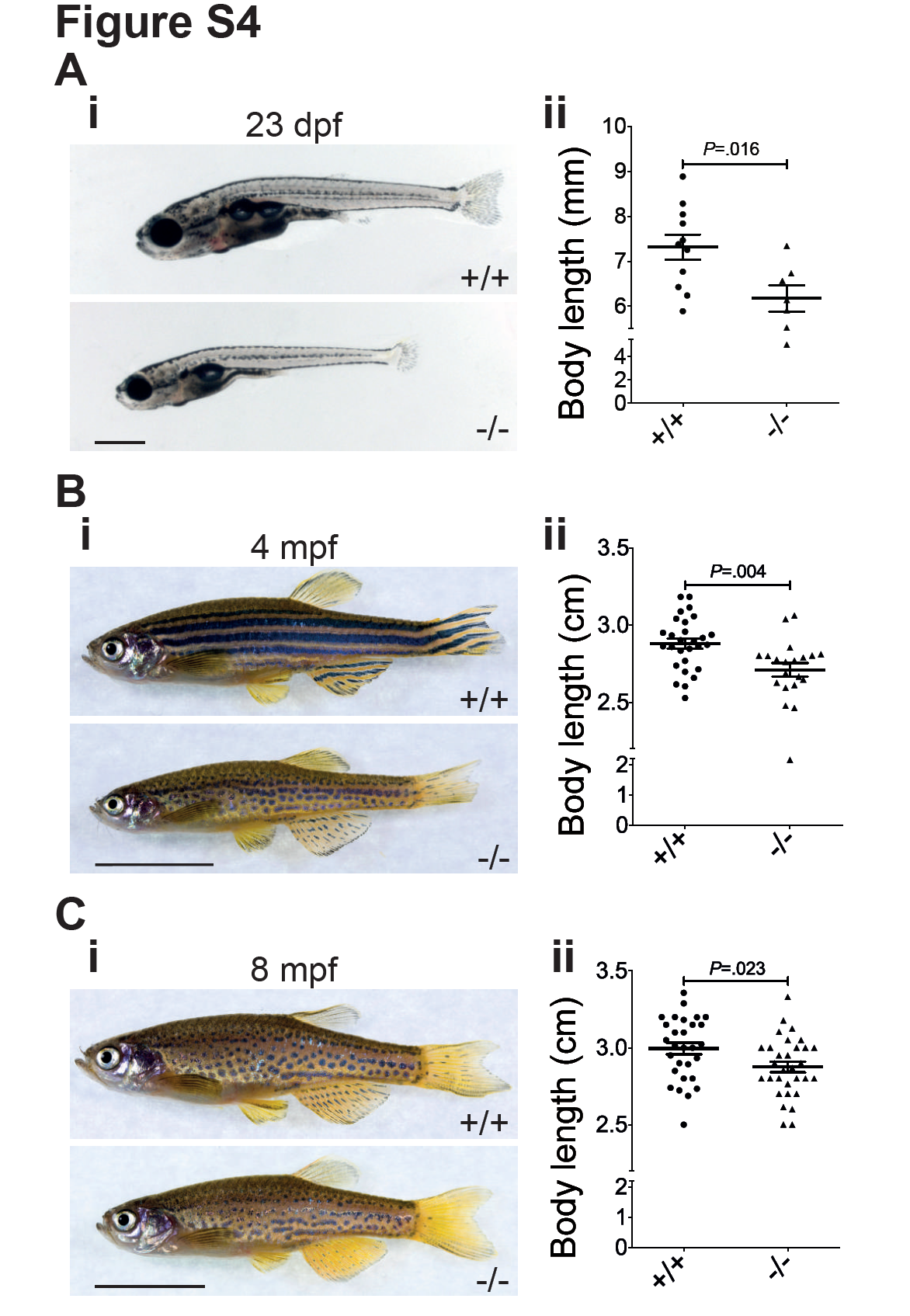

Fig. S4
Rad51 mutant fish are smaller than their wild type siblings. (A) Representative images of mutant and wt fish at 23 dpf (i). (ii) Graph showing difference in size between the genotypes. Two-sided Student’s t-test (P=.0016), n+/+=11, n-/-=7. Scale bar=1 mm. (B) Comparison of mutant and wild type fish at 4 mpf. Two-sided Student’s t-test (P=.004), n+/+=28, n-/-=19. Scale bar=1 cm. (C) (i) Representative images of mutant and wt fish at 8 mpf. (ii) Graph showing difference in size between the genotypes. Two-sided Student’s t-test (P=.023), n+/+=29, n-/-=31. Scale bar=1 cm. Bars represent mean +/- SEM in all graphs.
