Figure Caption
Fig. S2

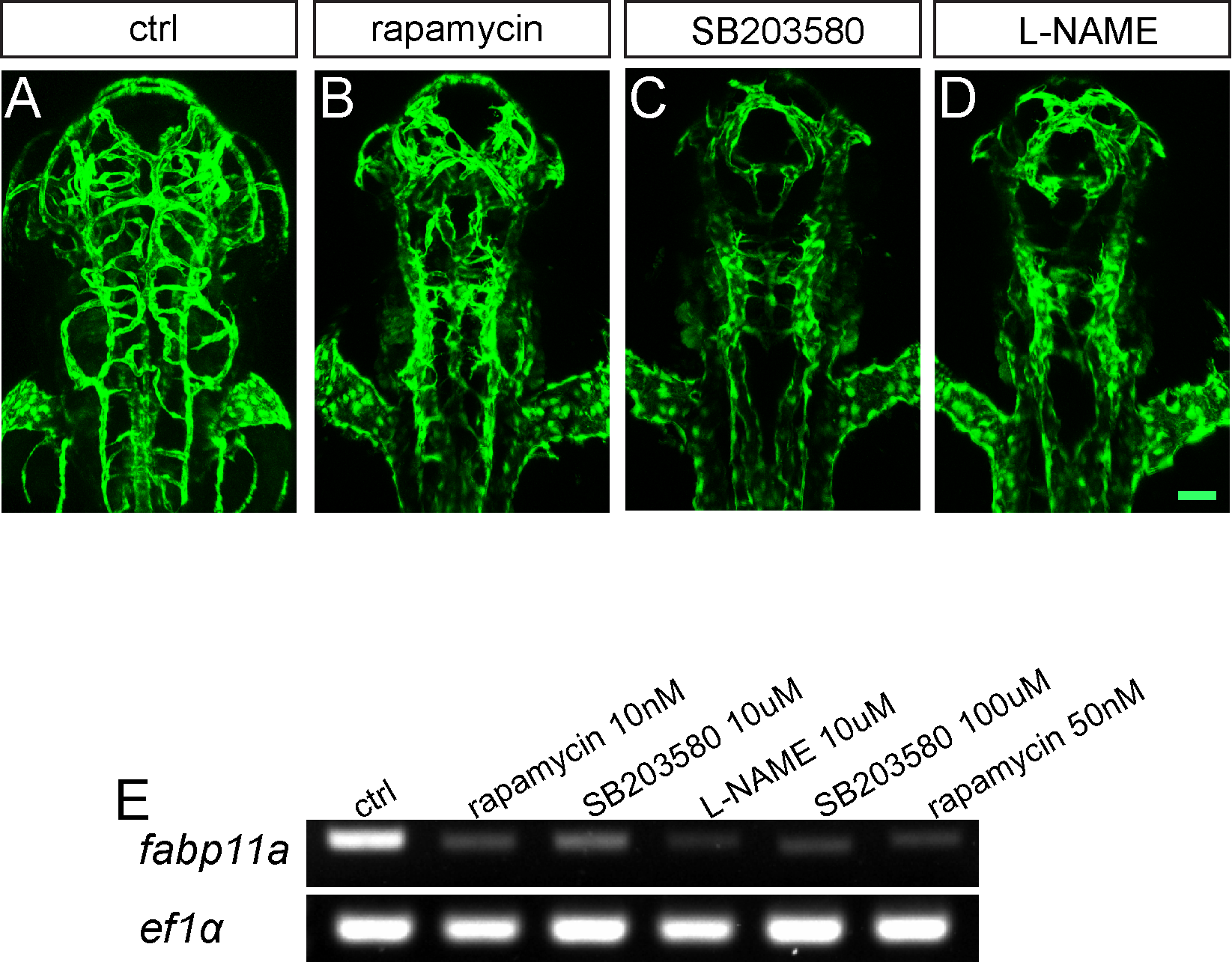

Pharmacological inhibition of mTOR, eNOS and P38 signaling impairs branching angiogenesis of brain vessels. (A-D) Confocal imaging analysis of control, rapamycin treated, L-NAME treated and SB203580 treated Tg(kdrl:EGFP) embryos. (B) Reverse transcription polymerase chain reaction analysis of fabp11a expression in control, rapamycin treated, L-NAME treated and SB203580 treated Tg(kdrl:EGFP) embryos. Scale bar: 20 µm.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front. Physiol.
