Fig. 1

The primary ocular vasculature in zebrafish.

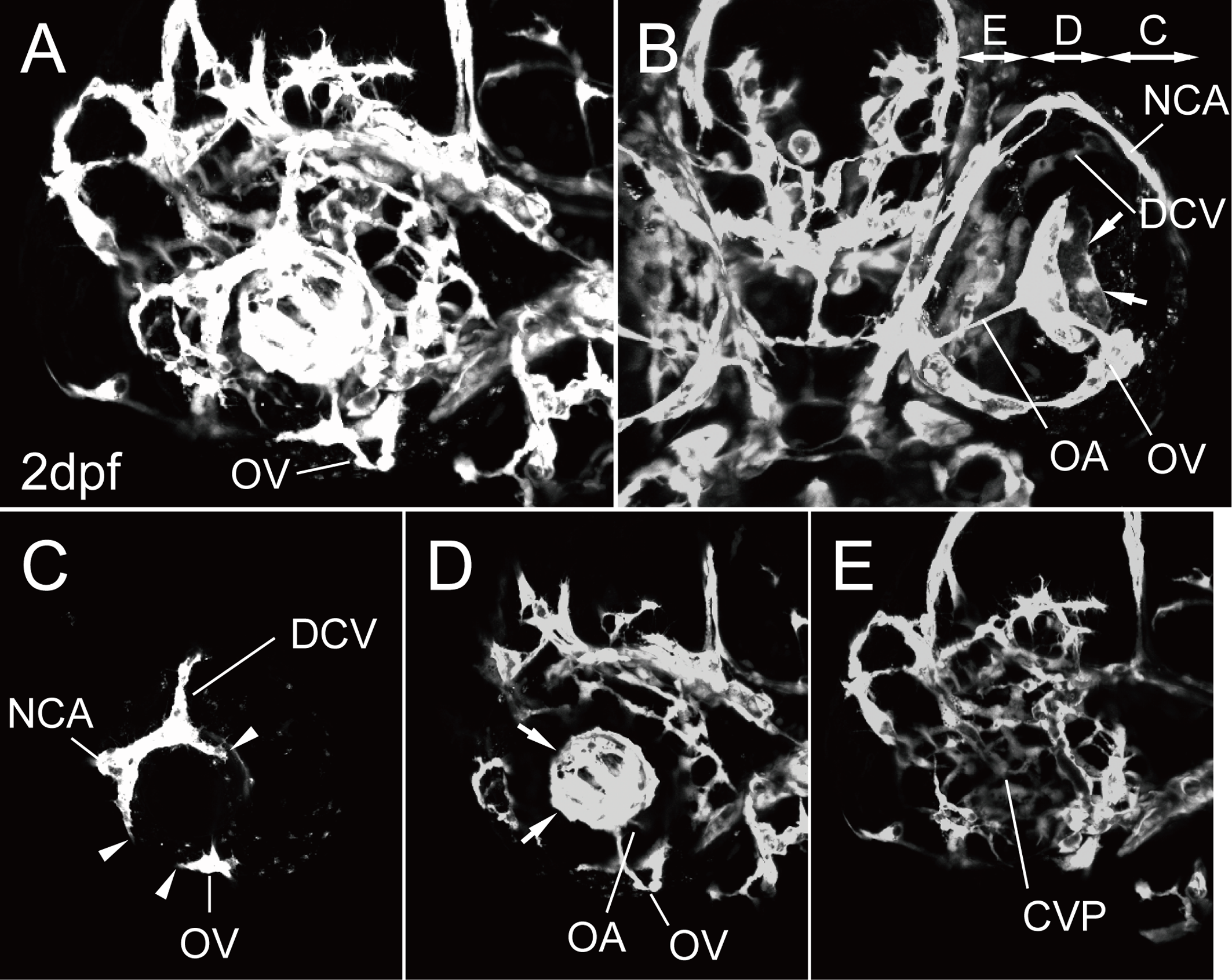

(A–E) Ocular vascular anatomy of Tg(flk1:EGFP)k7 embryos at 2 dpf. Lateral (A, C, D, and E) and ventral (B) views. Lateral image of A divided into three parts: the superficial ocular (C) and hyaloid (D) vasculatures and the CVP (E). Panels C, D, and E in B indicate the projected region of each image. Arrows in B and D indicate the vascular plexus of the HA. Arrowheads in C indicate the IOC forming, which will connect the superficial ocular vasculature with the hyaloid vasculature.
