Fig. S9

ID: ZDB-IMAGE-180104-25
Publication: Ferre-Fernández et al., 2017 - Whole-Exome Sequencing of Congenital Glaucoma Patients Reveals Hypermorphic Variants in GPATCH3, a New Gene Involved in Ocular and Craniofacial Development
All Figures: Figures for Ferre-Fernández et al., 2017


Figure Caption

Fig. S9

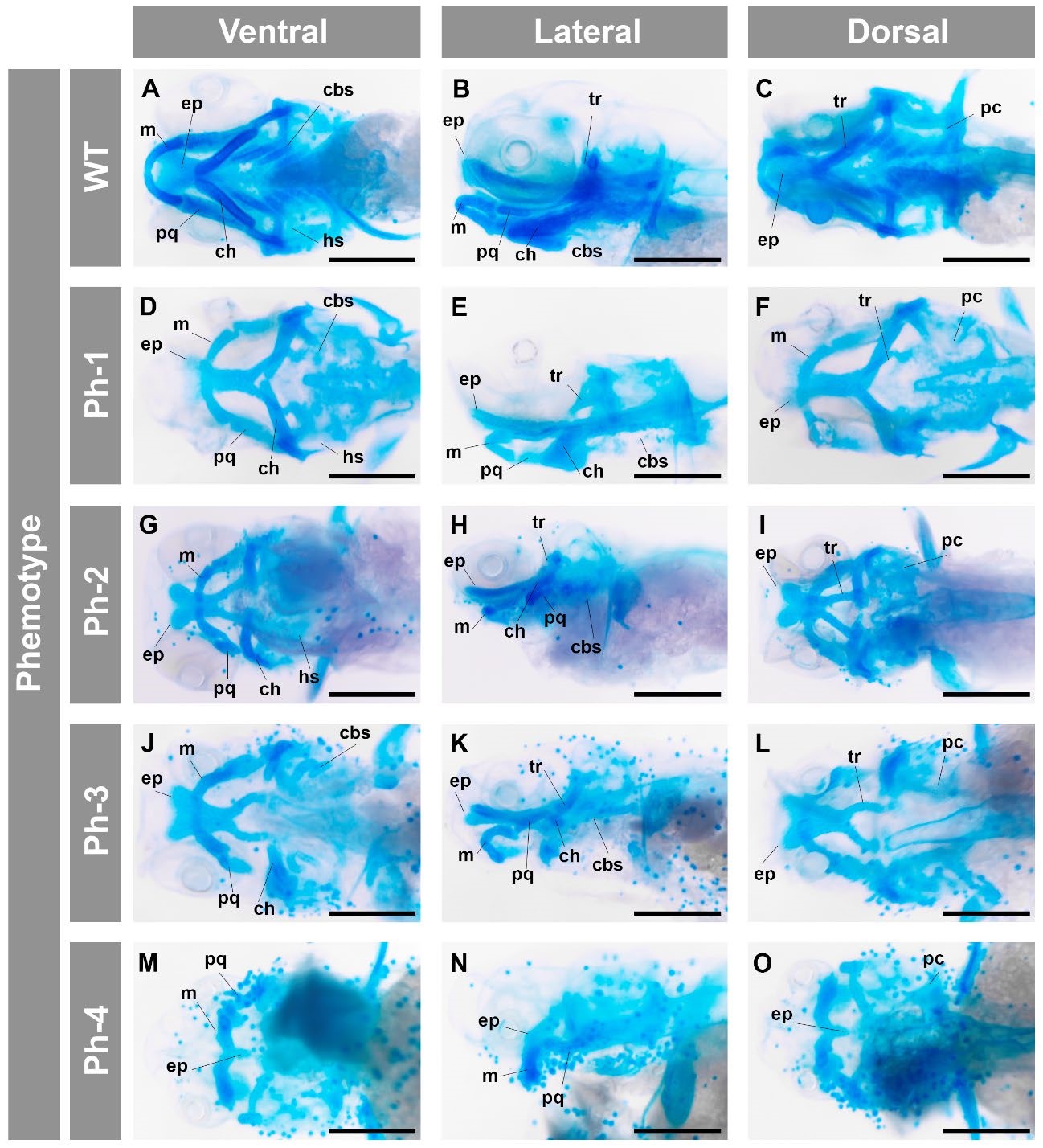

Alcian blue cartilage staining in Gpatch3^ATG morphants at 96 hpf.

cbs, ceratobranchials; ch, ceratohyal, m, Meckel’s cartilage; ep, ethmoid plate; hs, hyosymplectic; pc, parachordal; pq, palatoquadrate; tr, trabecula. Scale bars represent 200 μm.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
