Fig. 7

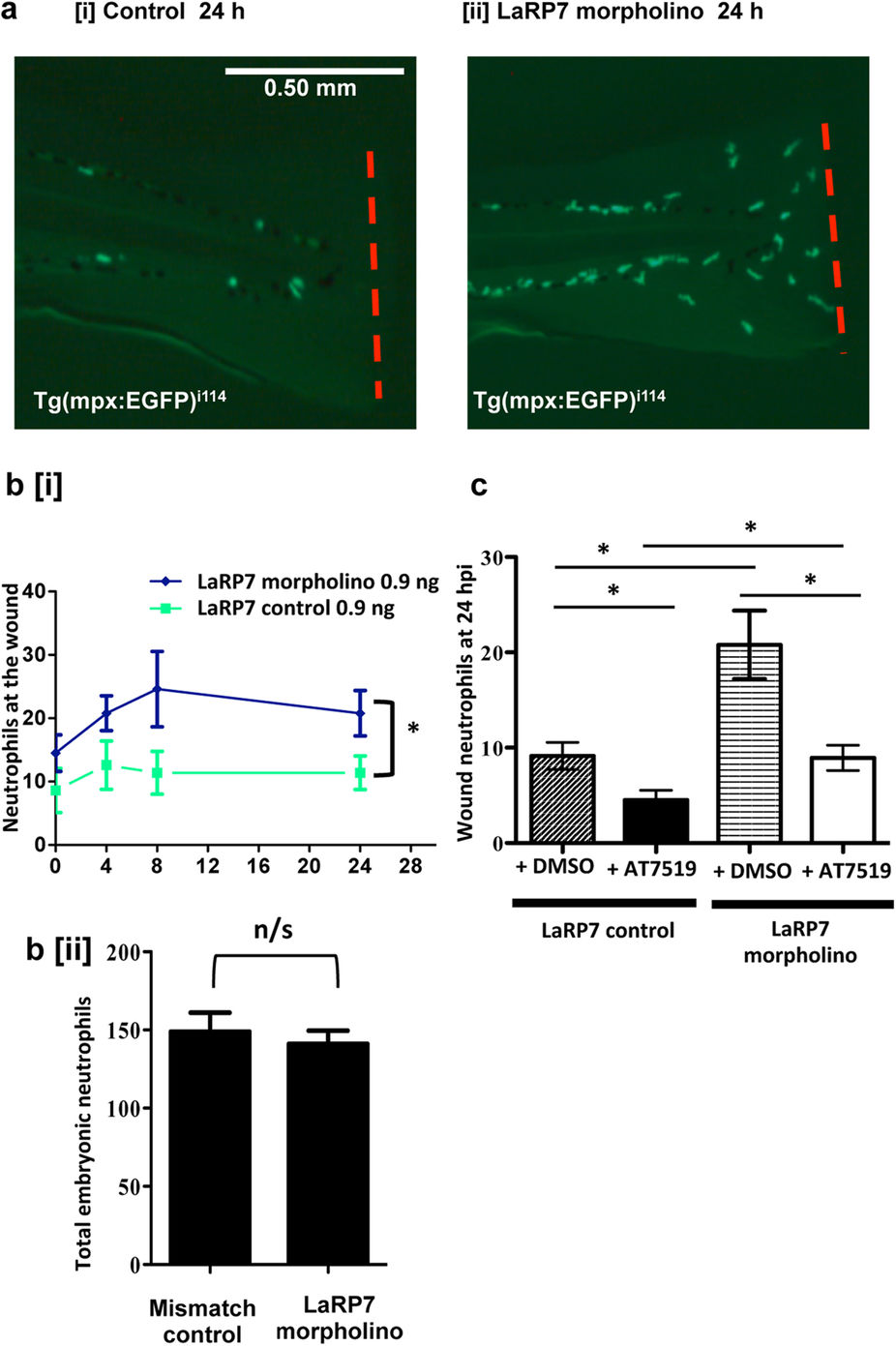

Knockdown of LaRP7 increases inflammation at the wounded tailfin, and this can be inhibited using the CDK inhibitor AT7519.

(a) Tg(mpx:EFGP)ⁱ¹¹⁴ zebrafish eggs were injected with a mismatched control or a morpholino sequence to knockdown LaRP7, and at 3 dpf the tailfin was transected with representative images at 24 hpi shown [i, ii]. (b) Neutrophils at the wounded tailfin [i] and also in the whole embryo [ii] were quantified. ≥10 fish per group in 3 independent experiments. (c) LaRP7 knockdown and control zebrafish were also injected with AT7519/DMSO at 4 hpi and the neutrophils quantified at various time points; shown is the 24 hpi time point. ≥19 fish per group in 3 independent experiments. Data shown as ±S.E.M. *p < 0.05. n/s: not significant. Data analysed by two-way ANOVA followed by post-hoc Newman Keuls or unpaired t-test.
