Figures for Vincent et al., 2017

Figure Caption/Comments:

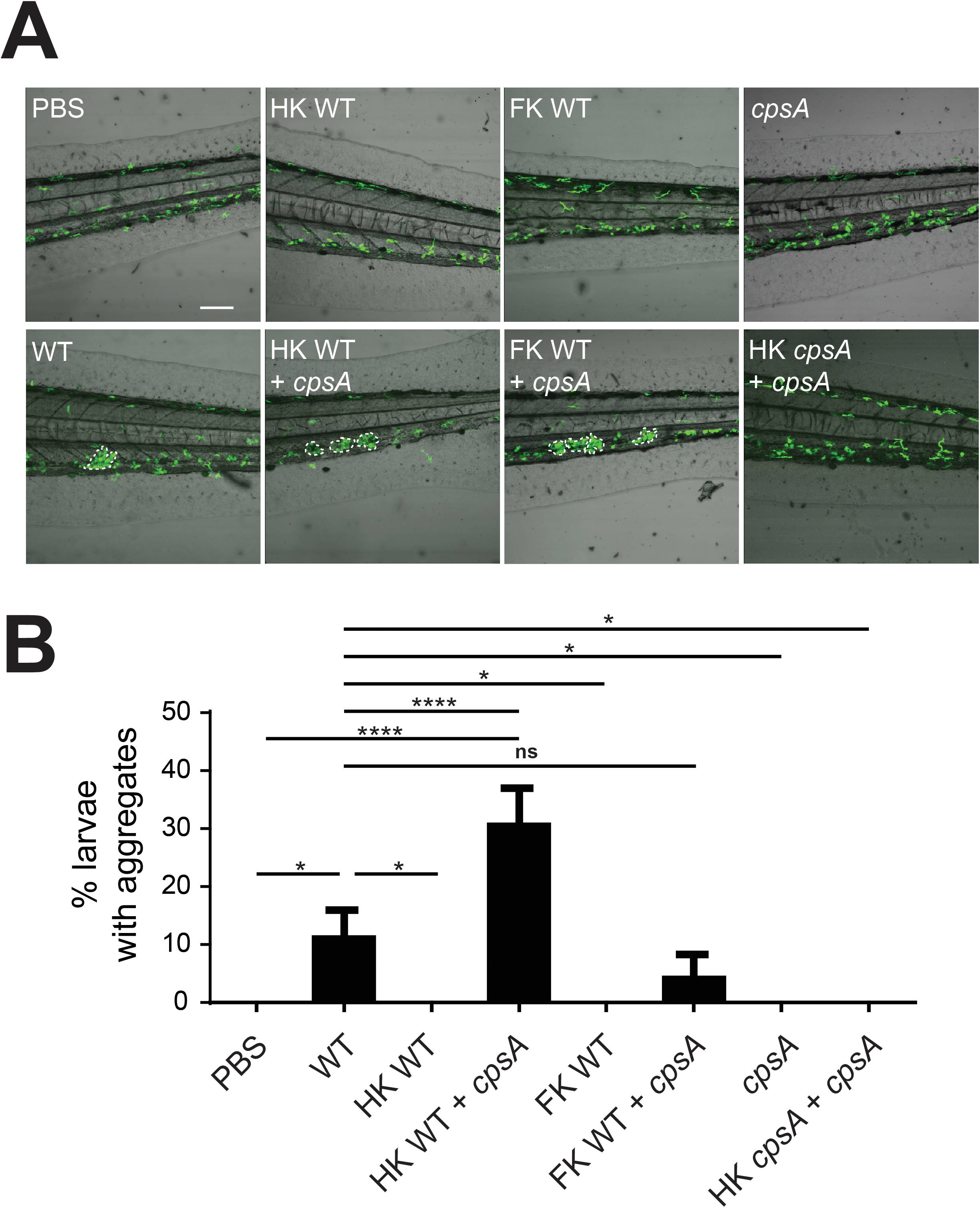

Fig. 2

S. iniae capsule is a determinant of aggregate formation.

(A) Representative 20X images of larvae at 24 hpi following inoculation with either PBS, 50 CFU WT S. iniae alone; 50 CFU equivalent heat killed (HK) or formalin killed (FK) plus 100 CFU cpsA S. iniae; 100 CFU cpsA alone; or 100 CFU live cpsA plus 100 CFU equivalent of HK cpsA. Scale bar is 80 μm. (B) Quantification of the average total percent of larvae forming macrophage aggregates from (A).
