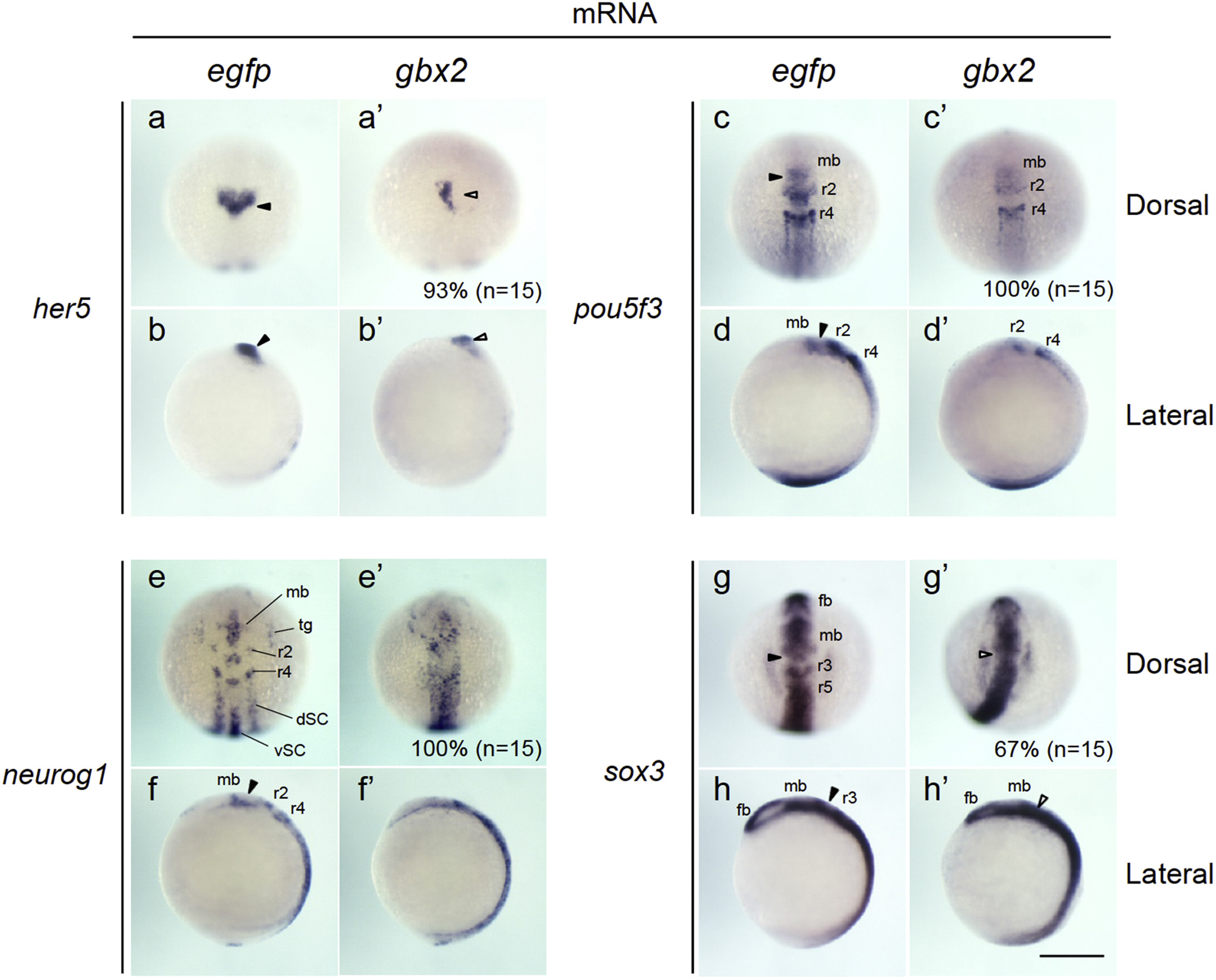

Expression of neurogenesis-related genes in embryos injected with gbx2 mRNA. The expression of genes related to neural development was examined by whole-mount in situ hybridization (WISH) in 3-somite-stage embryos injected with mRNA for egfp (a–h) or gbx2 (a'–h'). (a, c, e, g, a', c', e', g') Dorsal views with anterior to the top. (b, d, f, h, b', d', f', h') Lateral views with anterior to the top and dorsal to the right. Percentages of the embryos showing abnormal expression are shown at the bottom right with total numbers of stained embryos in parentheses. dSC, dorsal spinal cord; fb, forebrain; mb, midbrain; r2–r5, rhombomeres 2–5; tg, trigeminal ganglion; vSC, ventral spinal cord; black arrowheads, normal MHB; open arrowheads, abnormal MHB. Scale bars, 200 µm.
