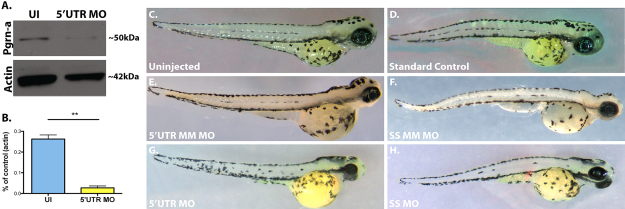

Fig. 2
pgrn-a-targeted morpholino oligonucleotides inhibit Pgrn-a translation, which results in microphthalmia. (A) Western blot showing Pgrn-a and Actin expression in 72 hpf uninjected (UI) and morphant (5?UTR MO) embryos. (B) Histogram showing quantification of Pgrn-a expression in UI controls (26.2?±?2.05%) and morphants (2.7?±?0.9%); **p???0.01. Quantitative data from three biological and technical replicates is normalized to Actin and represented as mean; error bars represent the standard deviation. (C?H) Representative whole embryos from control (C?F) and experimental (G?H) groups at 72 hpf. 5?UTR MM MO and SS MM MO, embryos injected with 5-nucleotide mismatch control morpholinos; 5?UTR MO, embryos injected with pgrn-a 5?UTR-targeted morpholinos; SS MO, embryos injected with pgrn-a e3i3 splice site-targeted morpholinos.
