Fig. S9

ID
ZDB-IMAGE-170921-34
Source
Figures for Kara et al., 2017
Figure Caption

Fig. S9

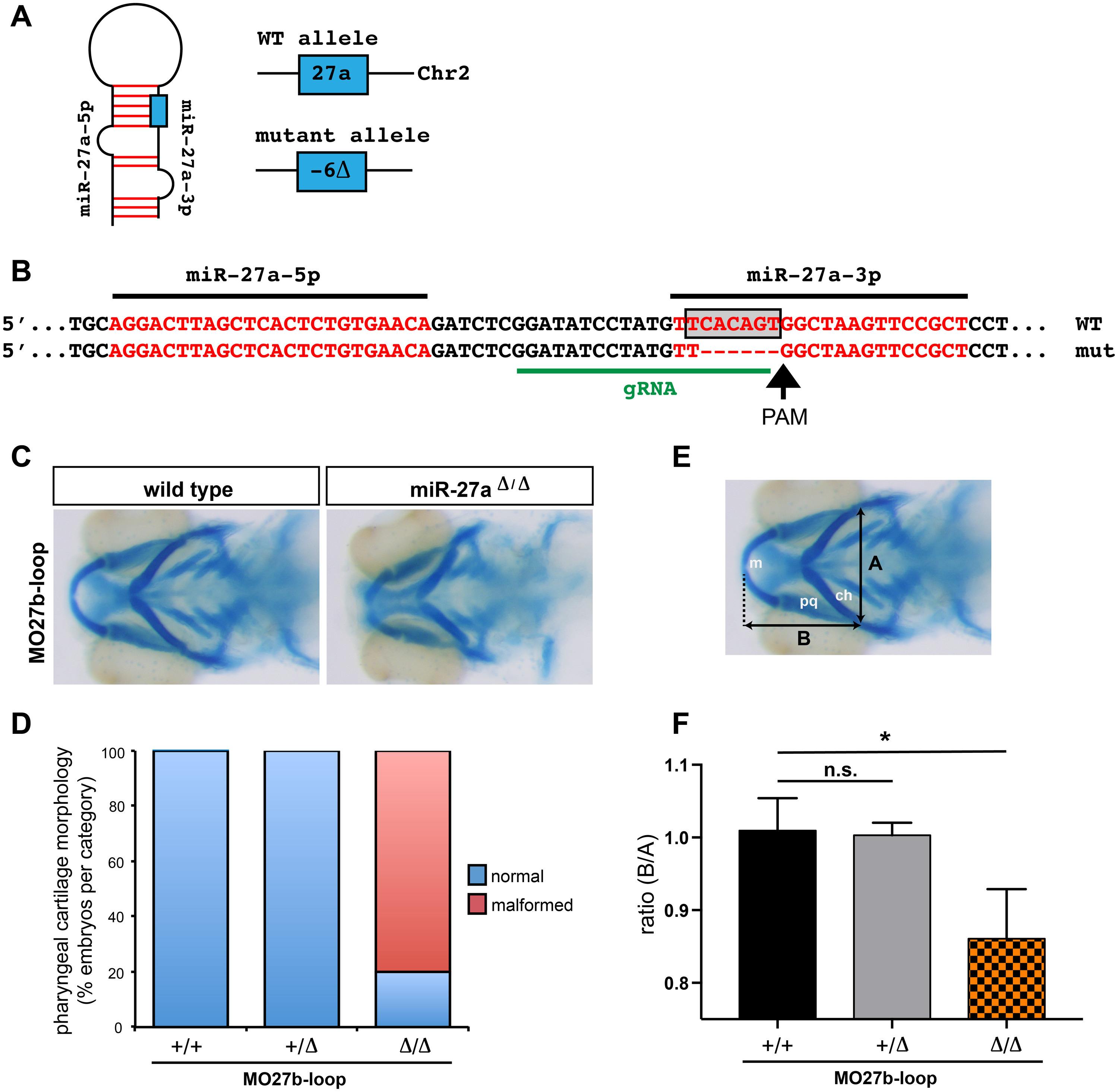

miR-27amutants have pharyngeal cartilage defects upon partial knock-down ofmiR-27b. (A) Schematic representation of the miR-27a precursor and generation of miR-27a mutants by CRISPR/Cas9. The blue box on the miRNA precursor represents the gRNA target region corresponding to the mature miR-27a seed. (B) The region of the miR-27a gene sequence that shows the CRISPR/Cas9 targeted region. miR-27a-5p and miR-27a-3p are shown in red. The seed region of mature miR-27a is shown in the grey box. The target region for the designed sgRNA is underlined in green. Arrow points to the PAM sequence. (C) Alcian blue staining of 4 dpf miR-27aΔ/Δ and WT siblings injected with 1.5 ng of MO-27b loop at the one-cell stage. (D) Phenotypic categorization of the pharyngeal cartilage in 4dpf miR-27aΔ/Δ, miR-27a+/Δ and WT siblings injected with 1.5 ng of MO-27b loop at the one-cell stage. n=20 for WTs, n=36 for miR-27a+/Δ and n=20 in miR-27aΔ/Δ. (E) Analysis of cartilage positions. Ventral view of head cartilage in wild-type embryos stained with alcian blue. A represents the distance between the palataquadrate (pq) and ceratohyal (ch) cartilage joints. B represents the distance from the anterior end of Meckel's cartilage (m) to the baseline. (F) The B/A ratio was calculated for quantitative analysis of anterior-posterior extension of the Meckel's cartilage. Error bars represent SEM. Statistical analysis was done using one-way ANOVA with Fisher's Least Significant Difference (LSD) test, *p<0.05.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 429(1), Kara, N., Wei, C., Commanday, A.C., Patton, J.G., miR-27 regulates chondrogenesis by suppressing Focal Adhesion Kinase during pharyngeal arch development, 321-334, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
