Figure Caption

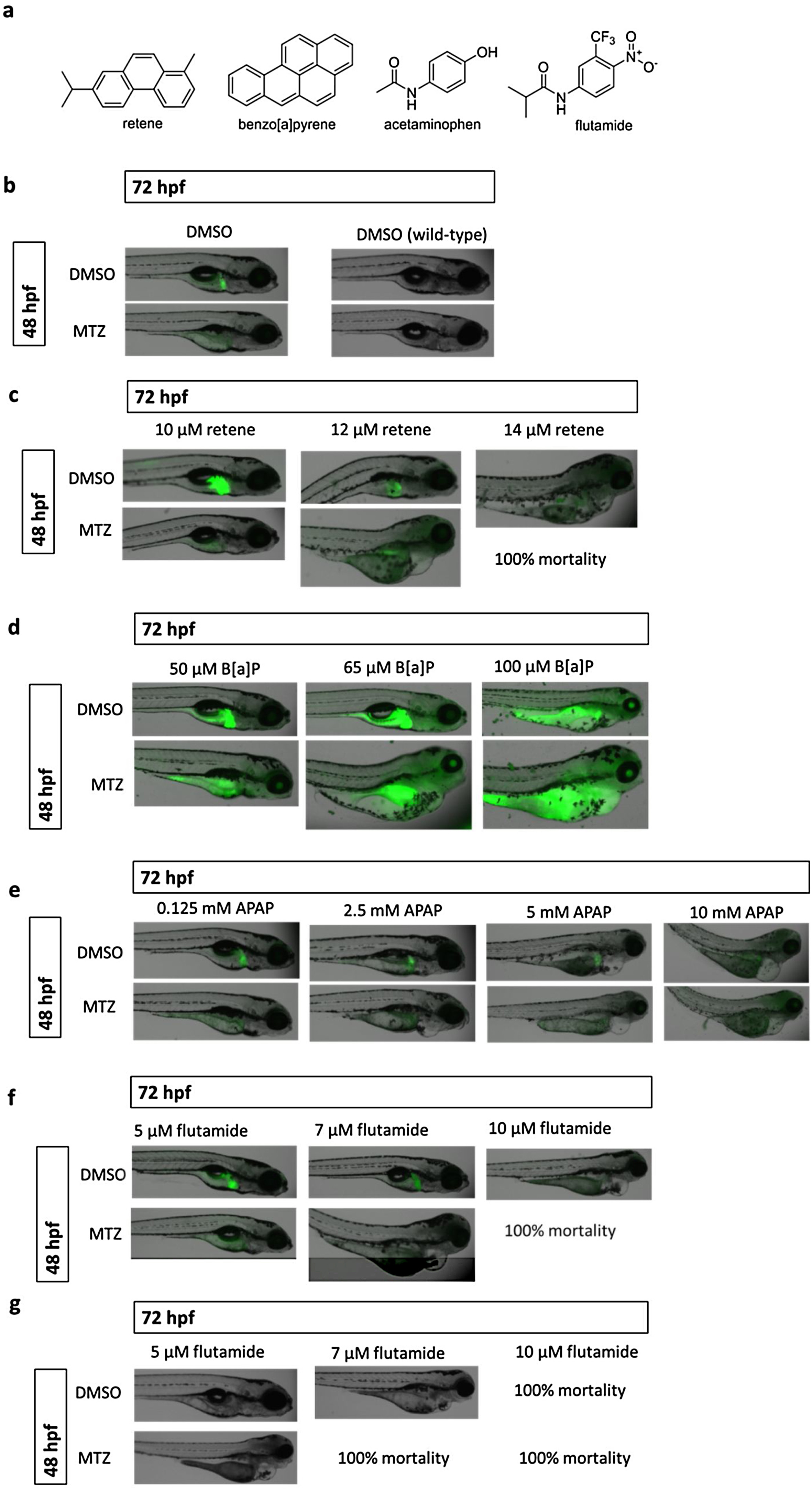

Fig. 5
Co-exposures with 10 mM metronidazole (MTZ) in Tg(l-fabp:CFP-NTR)s891 and wild-type zebrafish embryos. Structures of all compounds tested are shown in (a). Embryos were exposed to MTZ at 48 hpf, and to 1% DMSO (1.5% DMSO-exposed animals were phenotypically indistinguishable) (b), retene (c), benzo[a]pyrene (B[a]P) (d), acetaminophen (APAP) (e), or flutamide (f) at 72 hpf. Additionally, wild-type embryos were exposed to flutamide (g). Imaging and evaluations were done for all animals at 120 hpf. Concentrations tested but not shown resulted in 100% mortality both in the presence and absence of MTZ.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Toxicol Rep
