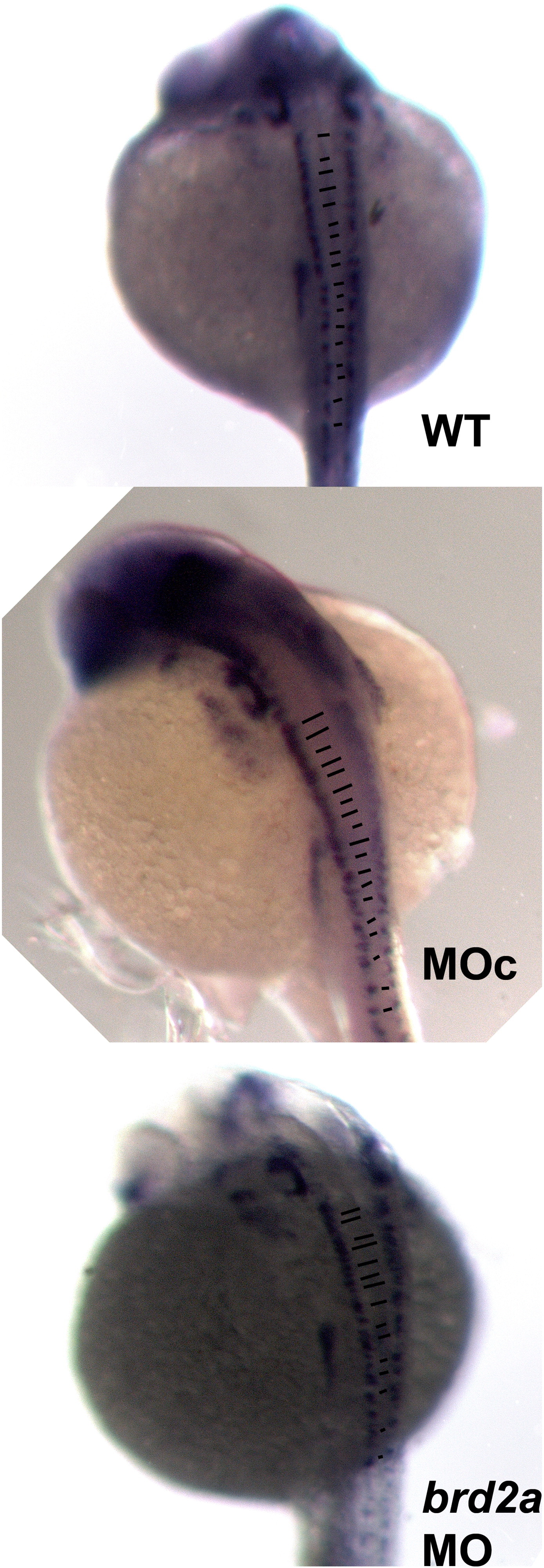

brd2aMO morphants exhibit disrupted patterning of hindbrain and spinal interneurons. Embryos from pax2a in situ to RNA experiments were examined to visualize various pax2a (+) cells along the A-P axis. Labeling of hindbrain and spinal interneurons by pax2a reveals A-P patterning of paired neurons on either side of the neural tube in wildtype uninjected (WT), control MOc-injected (MOc) and brd2aMO1-injected (brd2aMO) embryos. In wildtype embryos, neurons are perfectly matched 97.1% of the time, with only 2.9% showing 2–3 mismatched pairs (A); similar results are observed in the morpholino control MOc group (B). In contrast, neurons in brd2a knockdown embryos (C) are normally matched only 17.2% of the time, with 48.3% showing 2–3 mismatches, and 34.5% showing an unrecognizable pattern (p < 0.0001, chi square contingency).
