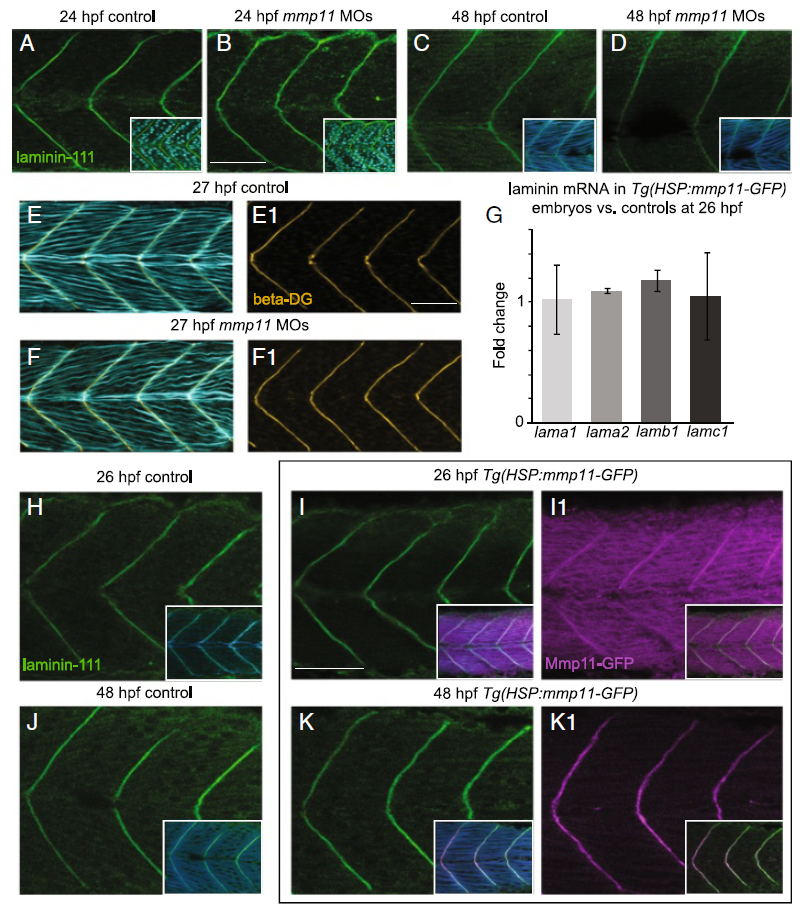

Laminin-111 at MTJs in not affected by Mmp11 knockdown or overexpression. A–F1, H–K1 Anterior left, dorsal top, side-mounted embryos stained for laminin-111 (green), nuclei (light blue), actin (light or dark blue), beta-dystroglycan (orange), or showing Mmp11-GFP (purple). A–B laminin-111 antibody and nuclei staining in 26 hpf embryos. A Control embryo. B mmp11 morphant embryo. C–D laminin-111 antibody and phalloidin staining in 48 hpf embryos. C Control embryo. D mmp11 morphant embryo (n = 8 embryos). Note that laminin-111 appears normal in mmp11 morphants compared to controls at 26 and 48 hpf. E–F1 Beta-dystroglycan antibody and phalloidin staining in 27 hpf embryos. E, E1 Control embryo showing merged panel E and beta-dystroglycan antibody staining alone (E1). F, F1 mmp11 morphant embryo showing merged panel F and beta-dystroglycan antibody staining alone (F1). Normal beta-dystroglycan antibody staining in mmp11 morphants indirectly supports that laminin-111 is unaffected by Mmp11 knockdown. G Relative mRNA abundance of lama1, lama2, lamb1, and lamc1 in mmp11 morphants compared to controls at 26 hpf. The expression of the laminin genes assayed is unchanged by Mmp11-GFP overexpression (n = 2 biological replicates of at least five embryos each). H–K1 laminin-111 antibody and phalloidin staining in heat-shocked AB controls and Tg(HSP:mmp11-GFP) embryos. H Control embryo at 26 hpf showing laminin-111 and laminin-111 merged with phalloidin (inset). I, I1 26 hpf Tg(HSP:mmp11-GFP) embryo showing laminin-111 (I), laminin-111 merged with phalloidin and Mmp11-GFP (inset in I), Mmp11-GFP (I1), and Mmp11-GFP merged with laminin-111 (inset in I1). J Control embryo at 48 hpf showing laminin-111 and laminin-111 merged with phalloidin (inset). K, K1 48 hpf Tg(HSP:mmp11-GFP) embryo showing laminin-111 (K), laminin-111 merged with phalloidin and Mmp11-GFP (inset in K), Mmp11-GFP (K1), and Mmp11-GFP merged with laminin-111 (inset in K1). Note that the timing of Mmp11-GFP MTJ localization recapitulates that of native Mmp11 protein, Mmp11-GFP and laminin-111 co-localize at MTJs, and laminin-111 appears normal in Tg(HSP:mmp11-GFP) embryos (n = 5 embryos). Scale bars are 50 μm
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Skelet Muscle
