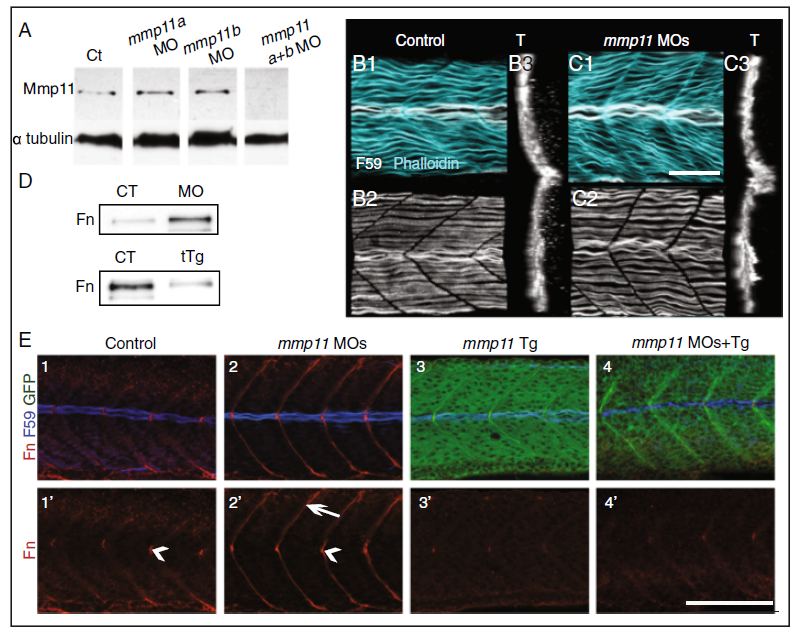

Mmp11 is necessary and sufficient for Fn downregulation. A Western blot of whole embryo homogenates at 26 hpf using Mmp11 antibody. Injection of individual MOs (a or b) alone did not reduce Mmp11 protein levels compared to controls. Co-injection of both MOs (a + b) reduced Mmp11 levels by approximately 14-fold compared to controls. Alpha-tubulin was used as a loading control. B, C Focal planes, 3D projections (anterior left, dorsal top, side-mounted), and transverse views ((T) lateral left, dorsal top) of control embryo (B) and mmp11 morphant (C) at 27 hpf, fast muscle fibers are stained with phalloidin (light blue) and slow-twitch fibers are stained with F59 (white). D Western blot of whole embryo homogenates at 32 hpf (upper panel) or 23 hpf (lower panel) using anti-Fn antibody. Upper panel: Fn protein level is increased by approximately 4.7-fold in mmp11 morphants compared to controls. Lower panel: Fn protein level is decreased by approximately 4.2-fold in embryos overexpressing mmp11-EGFP (tTg) compared to controls. E Medial focal plane, anterior left, dorsal top, side-mounted embryos at 26 hpf stained with Fn antibody (red) and F59 antibody (blue). Overexpression of mmp11-EGFP is green. E1, E1’ Control. (E2–E2’) mmp11 morphant (n > 60 embryos). Note that Fn concentrates adjacent to MPs in both controls and mmp11 morphants (arrowheads in E1’ and E2’) but only concentrates adjacent to fast-twitch muscle fibers in mmp11 morphants (arrow E2’). E3–E3’ mmp11-EGFP transgenic. Note that Fn is downregulated adjacent to MPs in transgenics compared to controls. E4–E4’ mmp11 morphant overexpressing mmp11-EGFP (n > 50 embryos). Mmp11-EGFP overexpression reduced Fn levels throughout the MTJ in mmp11 morphants. Scale bars are 50 μm
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Skelet Muscle
