Figure Caption

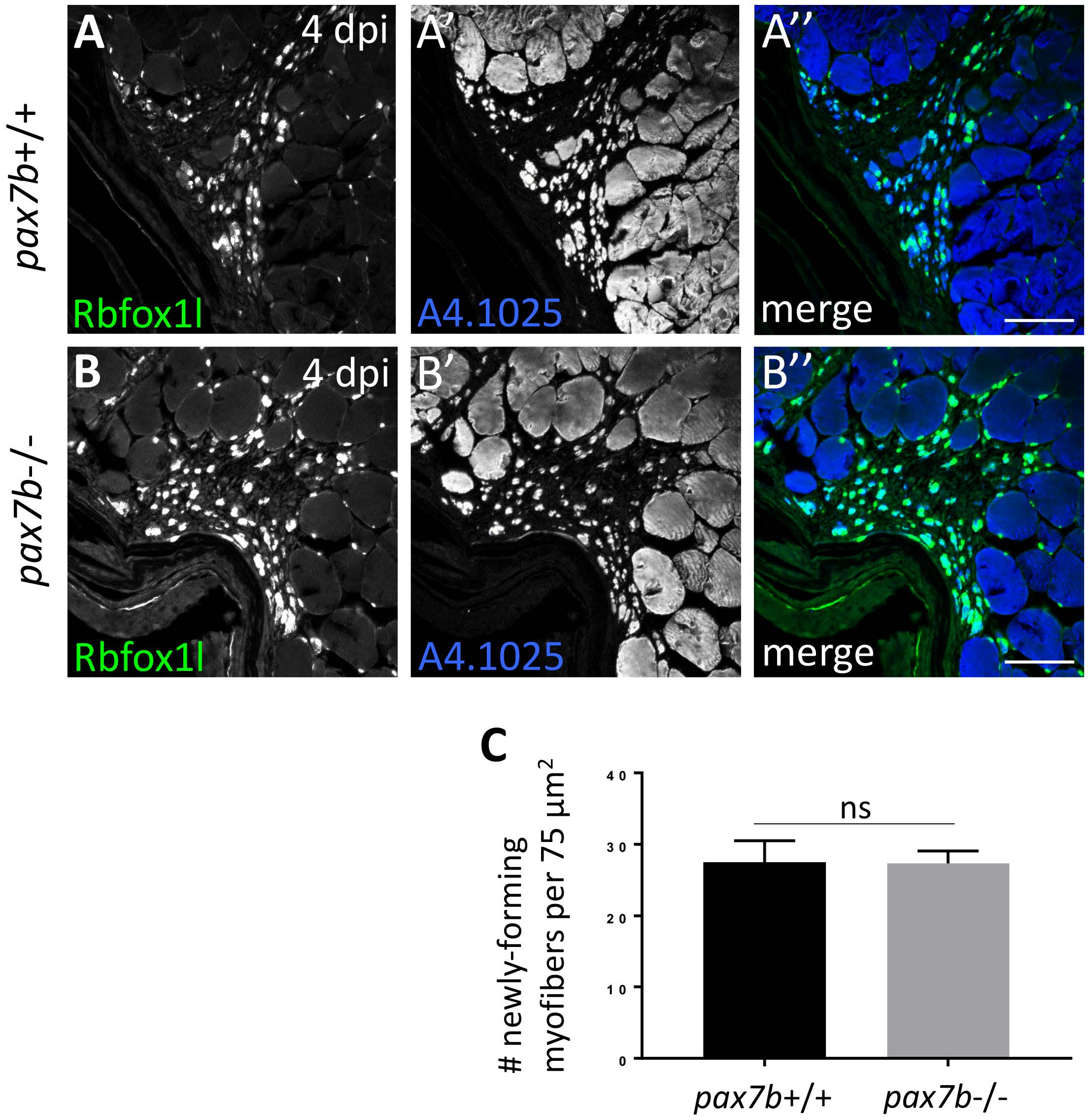

Fig. S9
pax7b mutants show no obvious defects in post-injury muscle repair. (A-B) Using Rbfox1l and MyHC as markers of newly-forming myofibers, no defects in post-injury repair are observed in pax7boz32-/- mutants at 4 dpi (compared to sibling controls). Scale bar in all panels is 75 µm. (C) No significant difference in number of newly-forming myofibers between wild-type and pax7boz32-/- mutants at 4 dpi. Total number of myofibers counted: pax7b+/+, 165 myofibers; pax7b-/-, 164 myofibers.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 424(2), Berberoglu, M.A., Gallagher, T.L., Morrow, Z.T., Talbot, J.C., Hromowyk, K.J., Tenente, I.M., Langenau, D.M., Amacher, S.L., Satellite-like cells contribute to pax7-dependent skeletal muscle repair in adult zebrafish, 162-180, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
