Fig. S4

ID
ZDB-IMAGE-170512-12
Source
Figures for Chetty et al., 2017
Figure Caption

Fig. S4

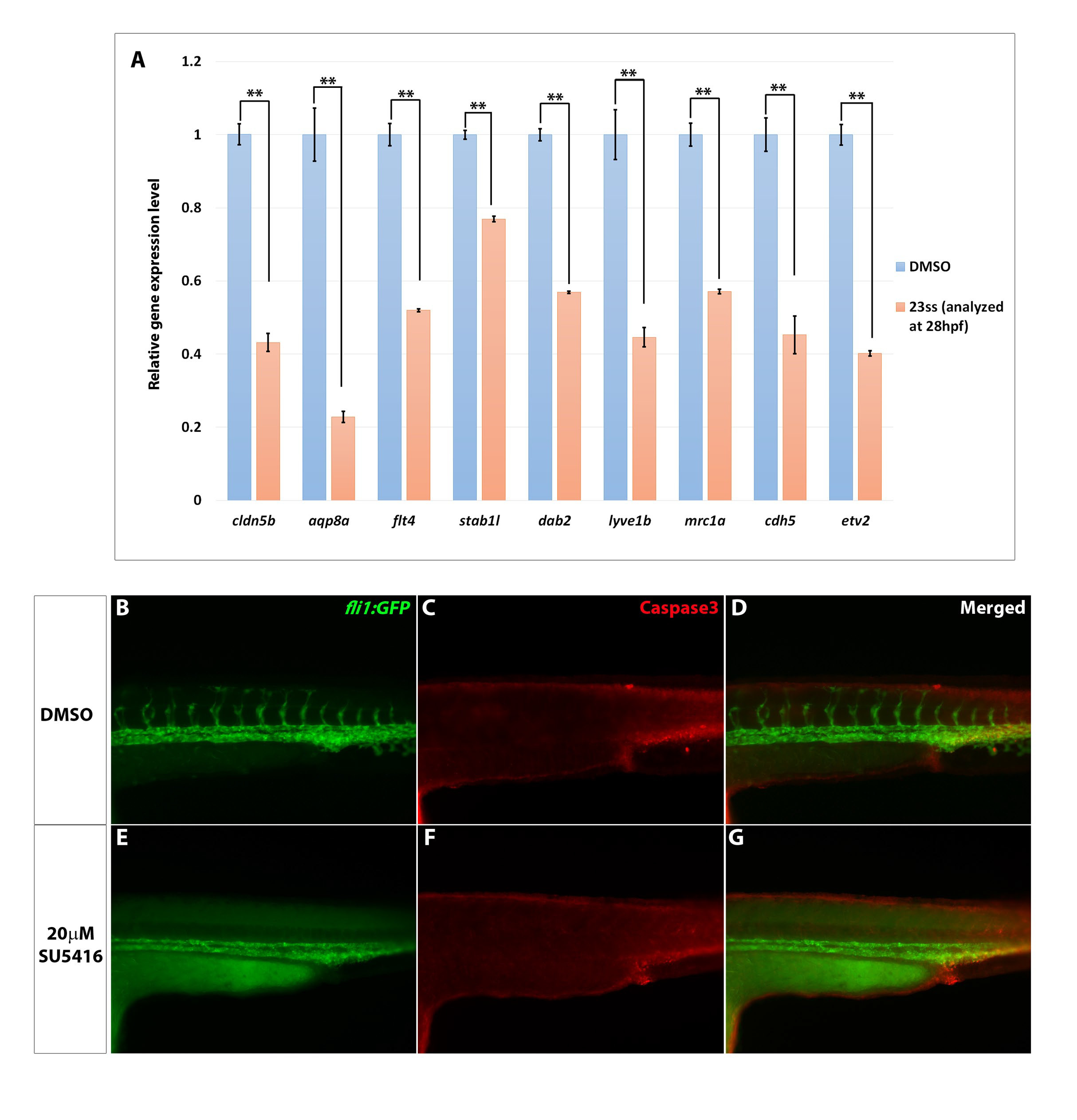

Analysis of marker expression and apoptosis in 28hpf embryos treated with SU5416 beginning at the 23-somite stage (20.5 hpf). (A) qRT-PCR analysis shows a significant decrease of all vascular markers in SU5416-treated embryos compared to DMSO-treated controls at 28hpf, after commencing treatment at the 23-somite stage. (B-G) Double immunofluorescent staining of active Caspase3 and GFP at 28hpf in fli1:GFP embryos treated with either DMSO or 20µM SU5416 (beginning at the 23-somite stage). Note the absence of Caspase3 staining in the trunk region of both the DMSO- and SU5416-treated embryos (C,F), indicating a lack of apoptosis in the trunk vasculature.
