Onset of zygotic gene expression in MZstat3 and WT embryos.

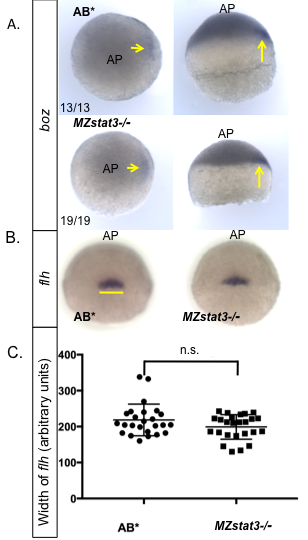

(A) Expression of bozozok/dharma (boz), a zygotic target of β-catenin, in WT (top, animal and lateral view, AP, animal pole) and MZstat3 embryos (bottom) at 4 hpf. Yellow arrows denote boz expression domain. (B) Expression of floatinghead (flh), an early zygotic gene whose expression domain rapidly changes shape with convergence and extension of the axial mesoderm, in WT and MZstat3 gastrulae in dorsal view and animal pole towards the top at 6 hpf. Yellow line indicates width of expression domain. (C) The mediolateral dimension of the flh expression domain at 6 hpf is not significantly different between WT and MZstat3 embryos. n.s. = non-significant.
