Figure Caption
Fig. S2
Various vertebral abnormalities contribute to the scoliosis phenotype in stat3 animals.

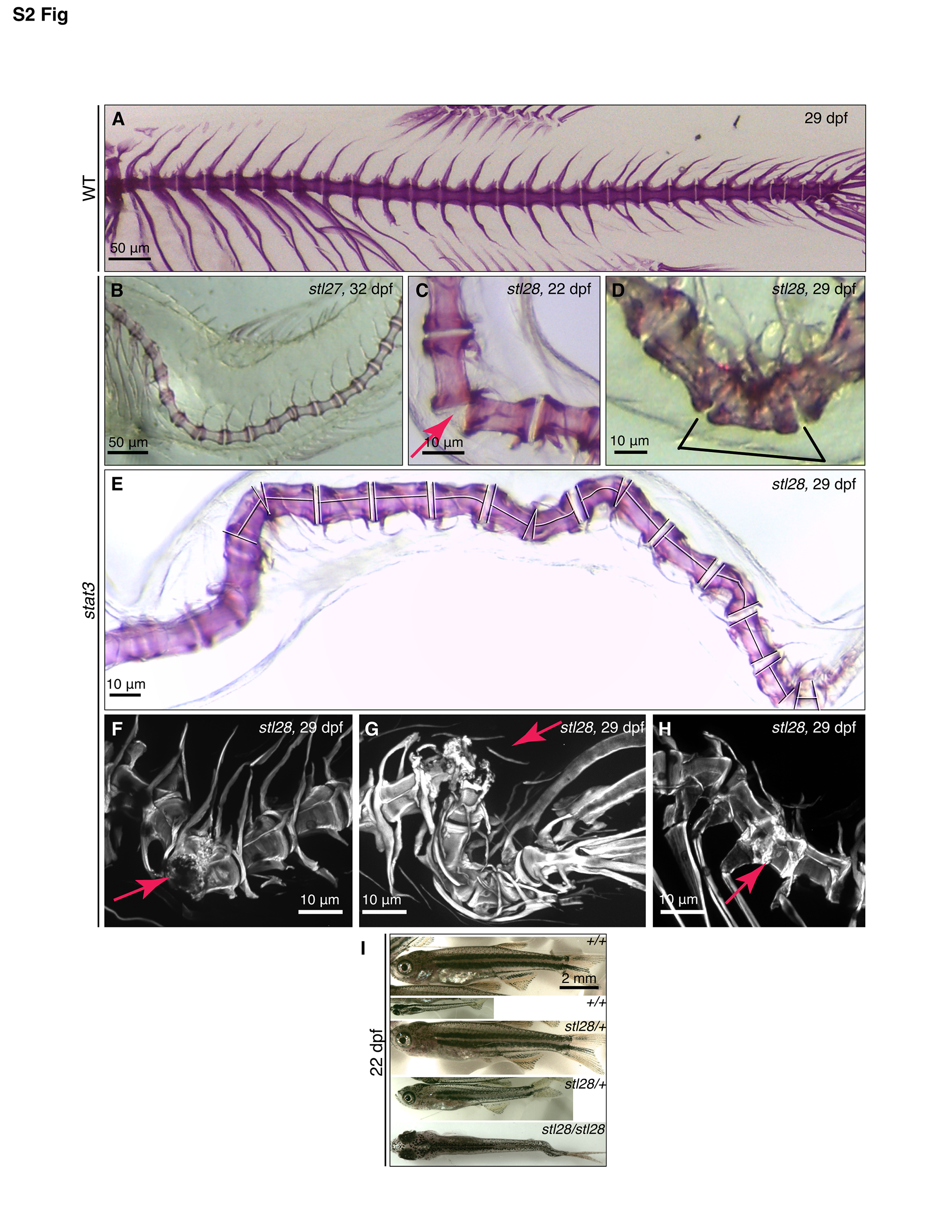

(A) Vertebrae of a WT larva at 29 dpf; anterior to the left. (B-H) Images of Alizarin stained skeletons showing various vertebral abnormalities. B and C, normal vertebral body and end plates, tilted intervertebral discs; D and E, bent vertebral body and non-perpendicular end plates; F-H, fractures and extra bony matrix. (I) Variations in larvae body length of stat3 mutant and siblings at 22 dpf.
