Figure Caption

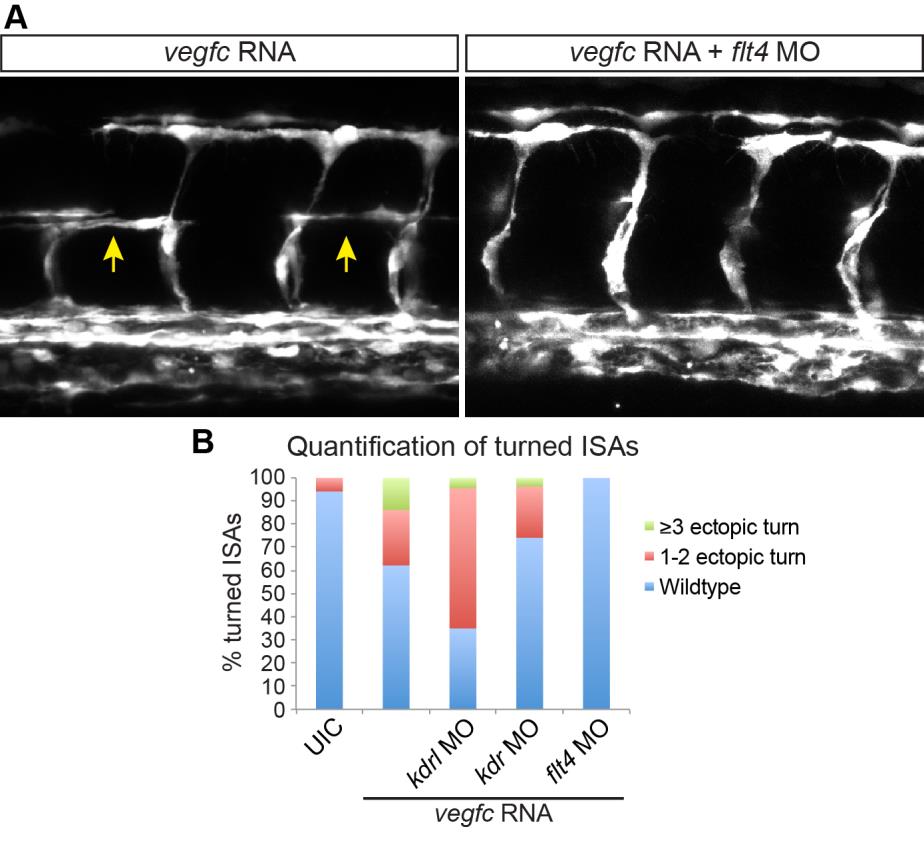

Fig. S2
The bilateral turning of aISVs following vegfc RNA injection is rescued by flt4 morpholino injection. (A) Injection of vegfc RNA causes bilateral turning of aISVs at 28-32hpf, which is rescued by co-injection of a flt4 morpholino as previously described (Hogan et al., 2009b). (B) Quantification of turned aISVs in embryos that were uninjected (n=35), injected with vegfc RNA (n=29), or vegfc RNA co-injected with kdrl (n=23), kdr (n=27) and flt4 (n=30) morpholinos. These experiments were performed in parallel with the vegfd mRNA experiments reported in Figure 4.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
