Fig. S3
GC differentiation is not affected in sio mutants.

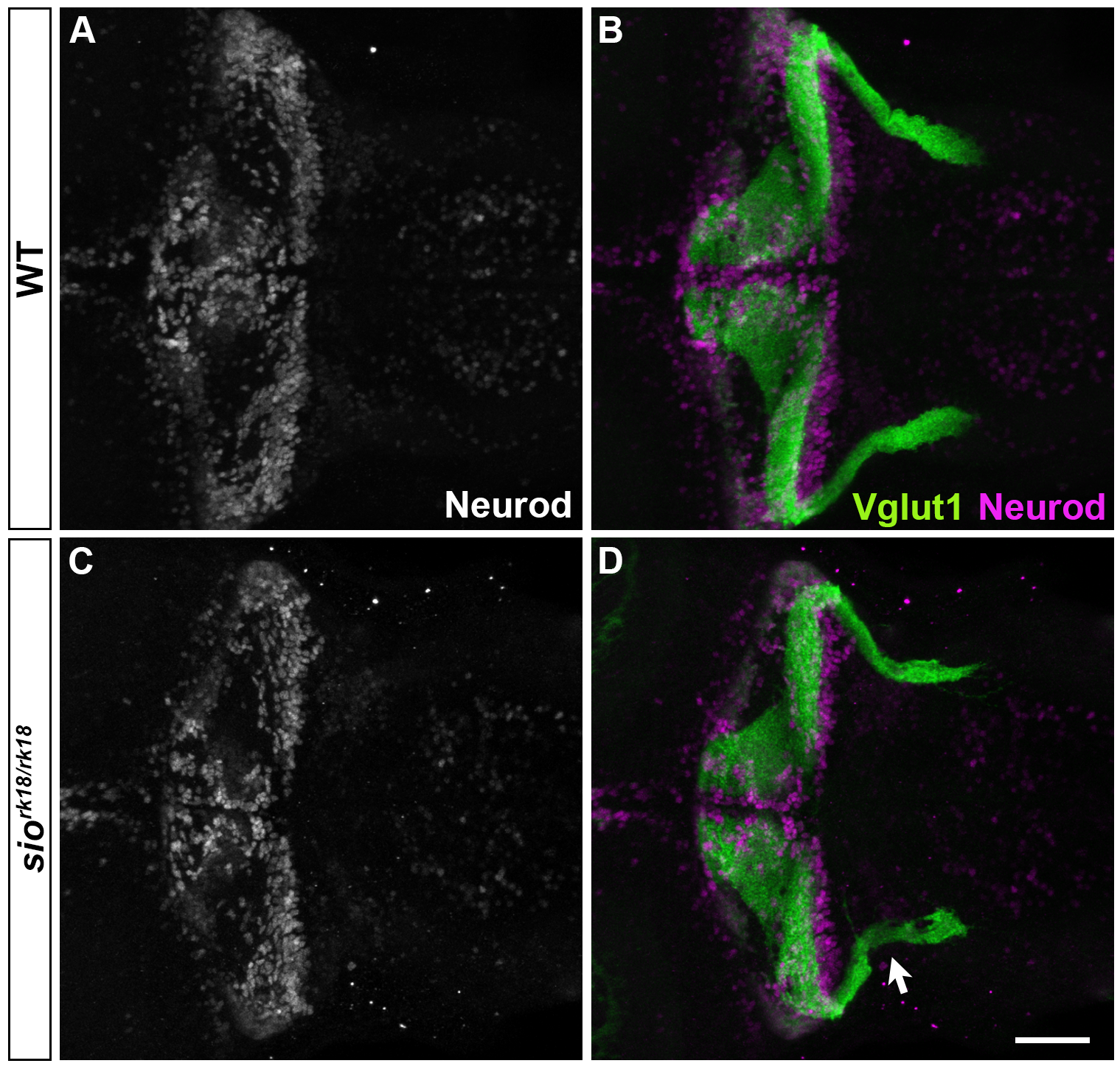

Wild-type (A, B) and sio mutant (C, D) larvae were stained with anti-Neurod (white in A and C, magenta in B, D) and anti-Vglut1 (green, B, D) antibodies, which mark the nuclei and axons, respectively, of the GCs. Although the axons of the caudolateral GCs were affected in the sio mutants (marked by arrow in D), the expression of Neurod was not significantly affected in the mutants. Scale bars: 50 μm in D (applied to A-C).
